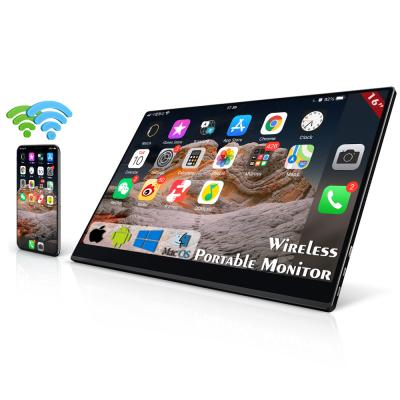

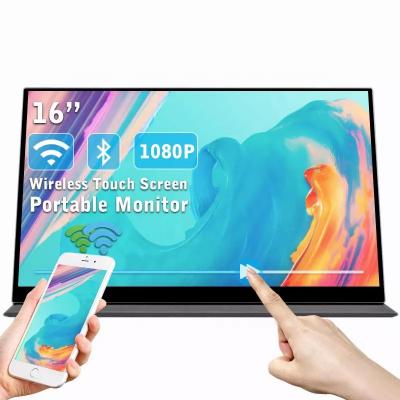

5G wifi wireless 16 inch built in battery touch screen portable monitor

  • 5G wifi Wireless display
  • Capacitive Touch Screen
  • Portrait Screen Display
  • Multiplatform Compatibility
  • Versatile Digital Connection
  • Both Wire or Wireless Connection for Optional
  • Item NO.:

    S43-1
  • Product Origin:

    China Guangdong shenzhen
  • Color:

    Black
  • Shipping Port:

    SHENZHEN
  • Lead Time:

    7day
  • Order(MOQ):

    1 piece

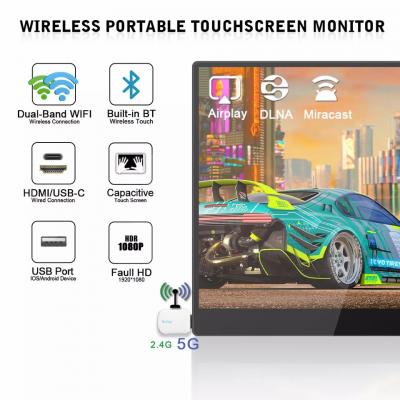

Sibolan bulit in battery 5G wifi wireless 16 inch fhd ips lcd display touch screen portable USB monitor

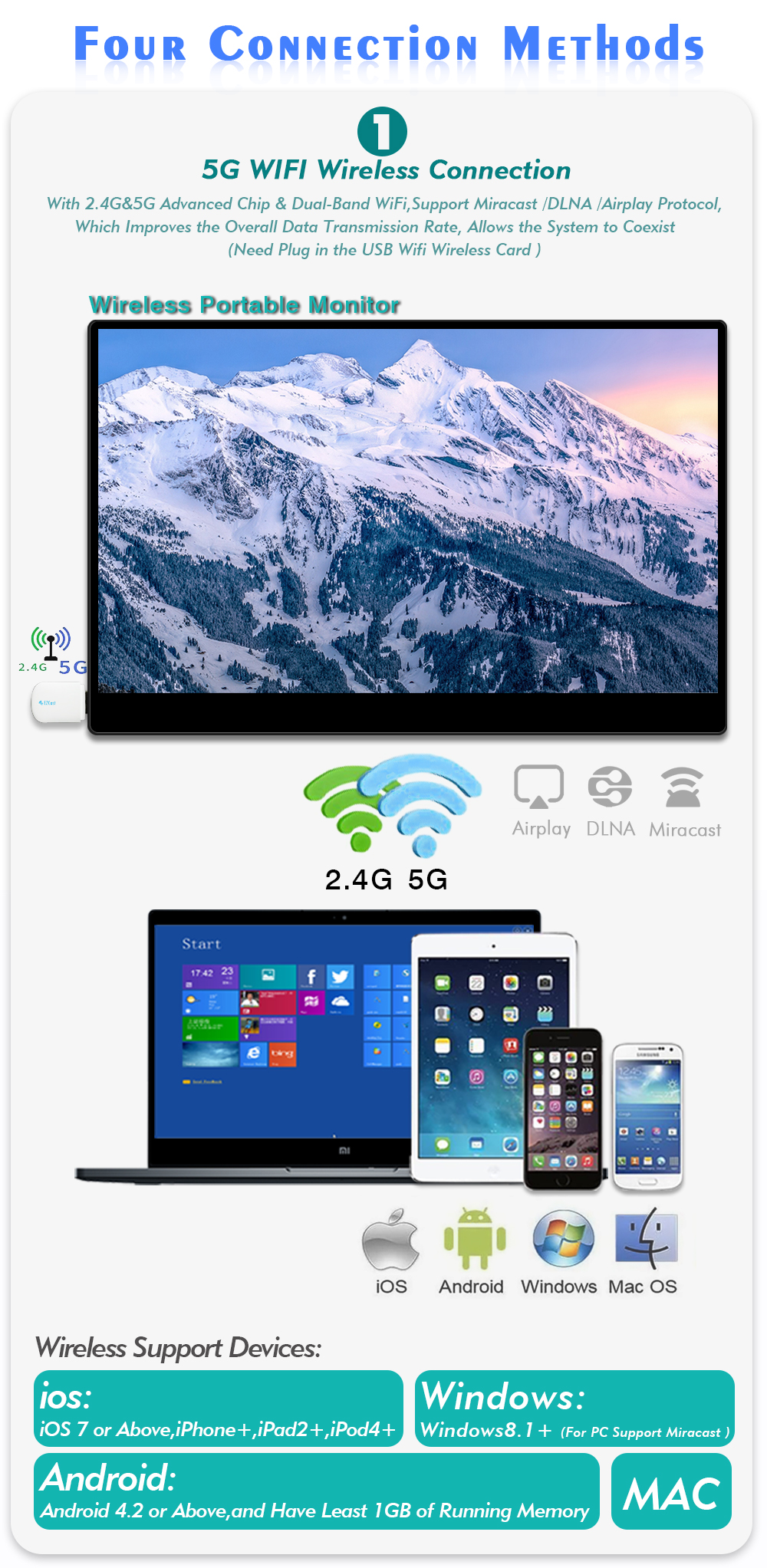

[5G wifi Wireless display]:
With 2.4G&5G Advanced Chip & Dual-band WiFi, improves the overall data transmission rate, allows the system to coexist. It ensures signal transfer stable, streaming smoothly , and the screen mirroring is fluently. Instantly mirroring your phone or lapto to the monitor wirelessly, You can clearly casting/mirroring photos, video, radio, music, office document(word,excel,ppt), online chat, movies, games in 1080P high definition from iOS & Android smartphone, laptop, ipad, macbook, tablets to our 5G wifi wireless portable monitor.

[Multiplatform Compatibility]:
Compatible with Android 4.2 or above, iOS 7.0 or above, Windows 8.1 or above, Mac OS etc. Supports Miracast, DLNA, Airplay modes, and other interconnection agreement. And Airplay mode and Miracast mode will switch automatically.
Note:
* 2.4GHz and 5GHz Internet Automatic Identification,
* Plug in the USB wifi dongle (build in 5G+2.4G wireless card)to the USB port of the monitor to get wifi signal,
* Please check your phone/PC is compatible or not before use the monitor (should support Miracast, DLNA, Airplay),
* Not compatible with the app that requires video license copyright (HDCP), like Netflix/ iTunes/ HBO Go/ Hulu Plus/ Honda Motor/ESPN/ YouTube App and other video App.

[Multi-functional USB port]:
1.For plug in the USB wifi dongle get a new technical to seperate the wifi antenna from the monitor ,you will get a much more better wireless connect video Feast,free from the Video ghosting and delay! at the same time ,you will free from monitor certification of the wifi wireless.As we get most of the certification for wifi wireless card part.

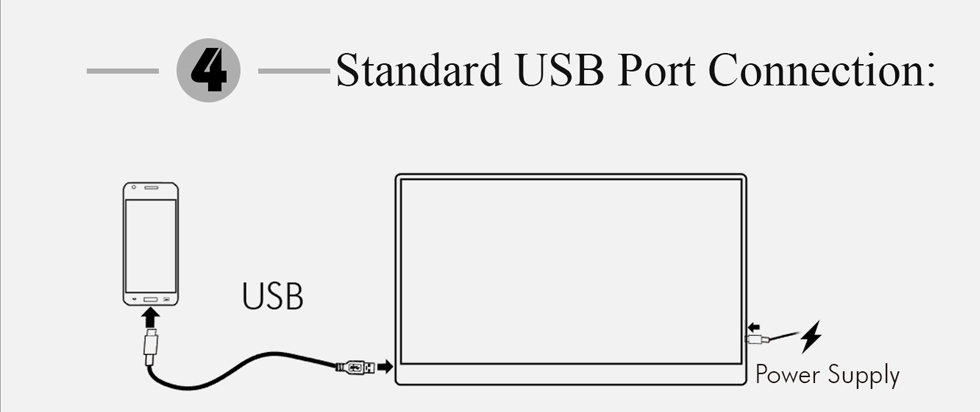

2.For lphone connect You can just use your own lphone USB cable plug in to the monitor USB port to airplay your lphone.

[Portrait Screen Display]:
When connected to lphone via wifi wireless, you can manual set Portrait Screen Display, which will very convenient for you to have a living show,you can set horizontally or vertically according to your needs, improves the work efficiency and entertainment more humanely.

[Both Wire or Wireless Connection for Optional]:
Support both Wire or Wireless Connection for Optional,There's 2.4G and 5G wifi wireless connection ,and also with USB,HDMI,Type-C input ports for you to wirely connect with your other devices.

[Capacitive Touch Screen]:
G+G Multi points capacitive Touch Screen ;Support windows7,win8,win8.1,win10; 10 point multi touch(For windows10 only);Plug and play,no need to download and install any software.
Note:
1.Multi-touch function only work when you set the SIBOLAN monitor as replication model (display same content with your PC monitor),
2.While connect Ipad/ lphone/Android phone via the USB port wired,the touch screen will not work,
3.While connect via wifi wireless to Iphone ,Anroid phone ,or other devices,the touch screen on the monitor will not work.

[FHD 1080P IPS Screen]:
This 5G wifi wireless portable monitor delivers a vivid image and truly immersive viewing experience with stunning 1920 x 1080 resolution isuals & awesome color reproduction. The 16 inch Full HD IPS portable screen offer 178 Full viewing angle and Eye Care technology that keeps your eyes from getting tired during prolonged use.

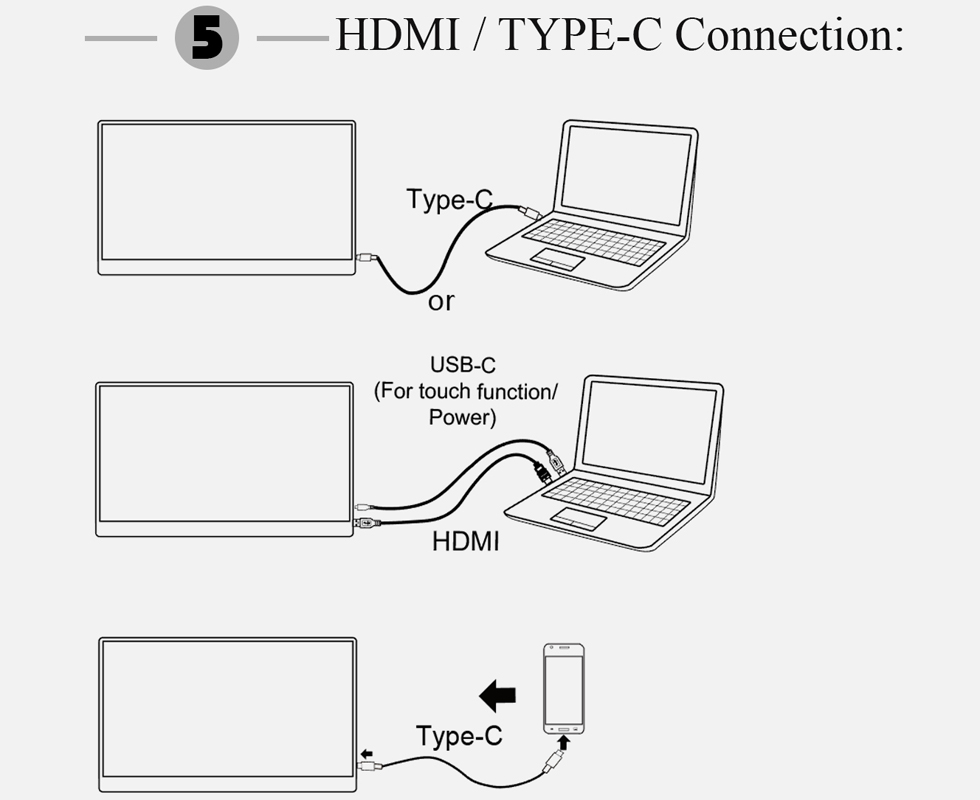

[Single Type-C Connect to Signal & Power]:
This portable monitor features an innovative hybrid-signal solution with integrated a 3-in-1 function Type-C interface for simultaneous power. signal transmission and USB interface functions.
(Note:you will require to power the monitor with DC adaptor incase there's power shortage.)

[Versatile Digital Connection]:
Portable screen with Type-c. HDMI, and Micro USB port make it easy connection with Laptops. PCs.lphone,smartphone. PS4,PS5. XBOX ONE or Nintendo Switch and Mouse,Keyboard.  Great ideal for extending your screen or playing games on business trip,travel,or home entertainment. Factory supply 16 inch 1080p resolution 5G wireless hd usb small display hdr touch screen ips portable usb monitor for laptop.

[Smart Cover & Screen Protector]:
The Smart Cover is made of durable PU leather exterior, a soft lining to keep your monitor safe. Extra Free Screen Protector give your monitor with fully protection from the scratches.(Optional accessory,pay extra to get it )
(Note: While connect your android phone or laptop via the Type-C,Please check if the Type C of your laptop/phone is a full featured Type C port. If it is just a Type C for charging, it will not be available.)

Touchscreen
Projective Capacitive G+G Full-Laminated Touch Monitor, support 10-finger multi-point touch,support win8,win8.1,win10
Panel Type
16 inch TFT IPS LCD (16:9 Wide) LED Backlight
Battery
With Build in battery 8000mAh,working time 3-4 workings
Resolution / Color Depth
1920(RGB) x1080(FHD)
Display colors
16.7M ,colors 6bits+FRC,71% sRGB


Miracast wifi wireless display
With 5.8G and 2.4G wifi wilress display
Support System:iOS 7.0/Android 4.2 and above model with over 1GB RAM/Windows8.1+/MAC10.8+
Support Protocol:Airplay/DLNA/Miracast/EZcast
Active Area
349.632(H)*196.668(V)
Pixel Pitch
0.1821 (H) X 0.1821 (V)
Viewing Angle(U/D/L/R)
85/85/85/85 (Typ.)(CR≥10)
Contrast Ratio
800:1 (Typical)
Flat Ratio
16:9 (H:V)
Brightness
220(cd/m2)
Response Time
30(ms)
Vertical Frequency
60Hz
VESA Mountable
Optional

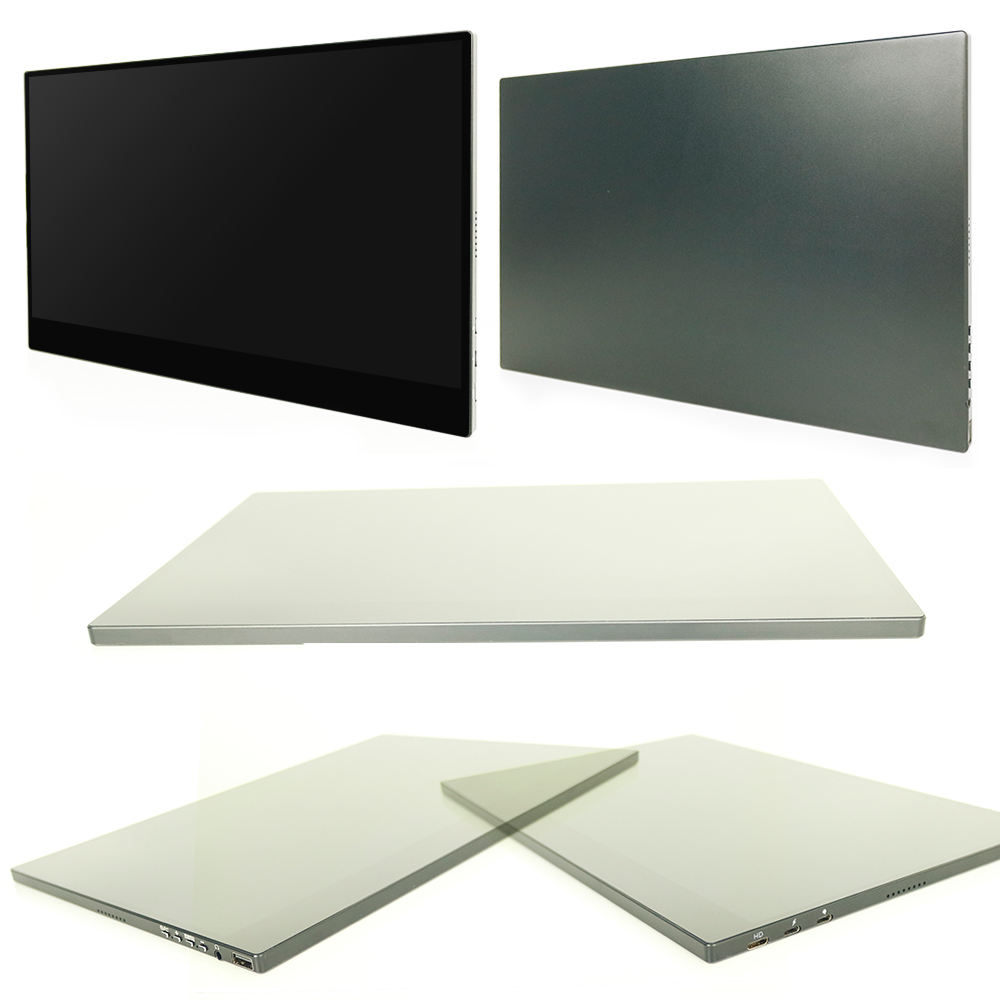

Monitor Housing
High Quality aluminium alloy
Connectivity
* HDMI Mini Port *1
* Type C Port*1( For Power and video data transfer)
* Type C Port( For Power 5V-3A)*1
* Head Phone Port*1
* Standard USB port*1(For USB wifi wiress card and lphone lighting cable for video streaming)
Compatible
Compatible with various of HDMI and Type-C devices: lphone ,Android Phone,laptop,Mac,Xbox One, Xbox 360, PlayStation 4, PlayStation,Switch,PC and Mobile devices
Speakers
2x 1.0W(Max.)
Rating Voltage
5V-4.0A
Dimension(W/H/T)
361*224*11 mm
Weight
960g
Free Accessories
USB WIFI Antenna card *1 / Type-C Cable*1 / HDMI Cable*1 /USB A-C cable*1 / User manual*1/5V-3A DC adopter*1
Optional(Pay extra to get )
Leather Case*1+10$

Note:Design and specifications are subject to change without prior notice.

5G wifi wireless portable monitor5G wifi wireless portable monitor5G wifi wireless portable monitor16 inch built in battery touch screen portable monitor5G wifi wireless portable monitor5G wifi wireless portable monitorSimple Operation Guide

5G wifi wireless 16 inch touch screen portable monitor

 * Power on your Monitor With the Supplied DC Adaptor

 * Plug in your Wifi Wireless Card to the USB Port of the Monitor

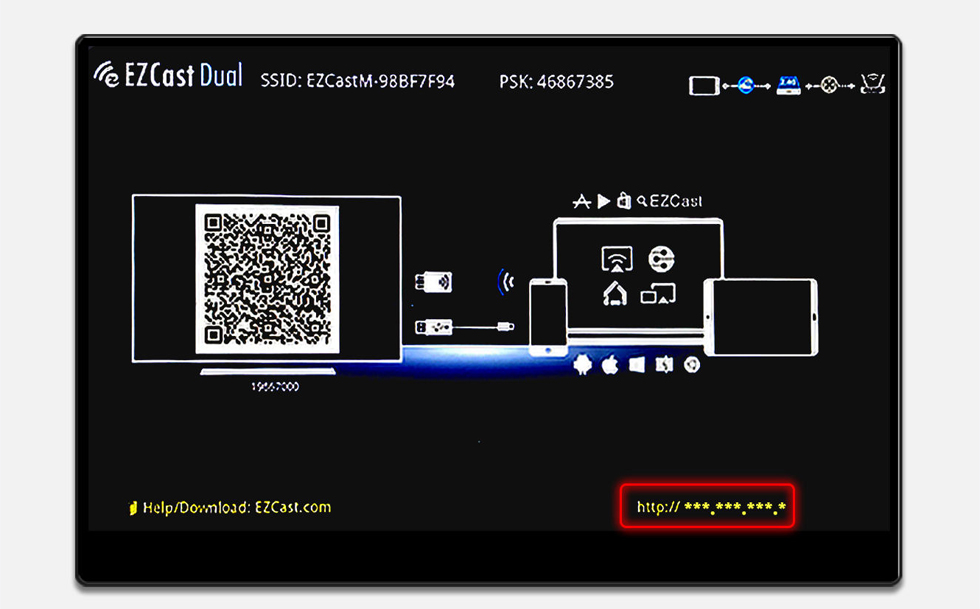

 * Wait for the Ezcast Main Screen Until There's EZcast Wifi Name and Password Show on the Screen

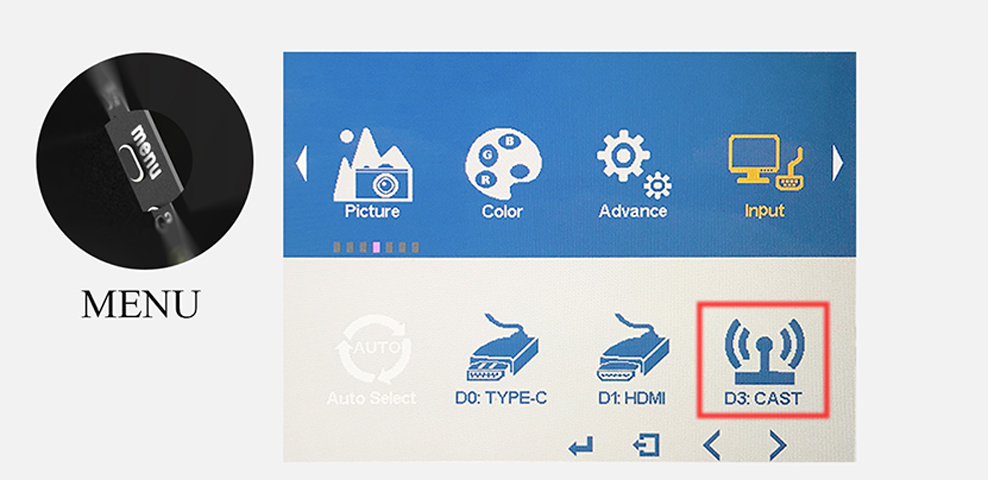

5G wifi wireless 16 inch touch screen portable monitor * Incase your Display is not on Ezcast Screen,Press the“Menu”Button and then“Power”Button to Switch Input Source to “D3:Cast”

5G wifi wireless 16 inch touch screen portable monitor

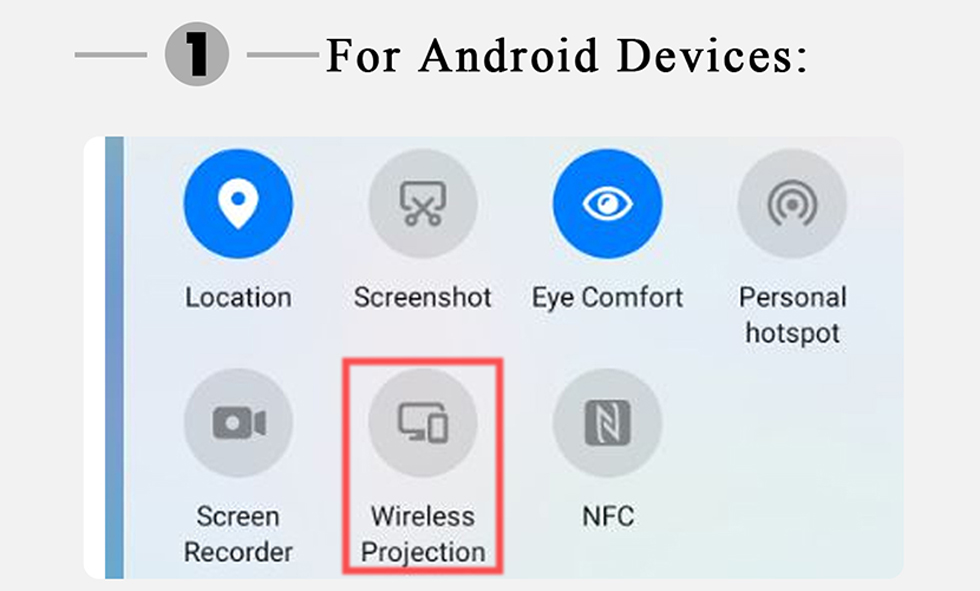

* Turn on your Android menu, and then enable Miracast.

* Select the WIFI name show on the monitor as target and wait fbr connection.

* Your Android screen will be shown on your Monitor, reconnect if necessaiy.

5G wifi wireless 16 inch touch screen portable monitor

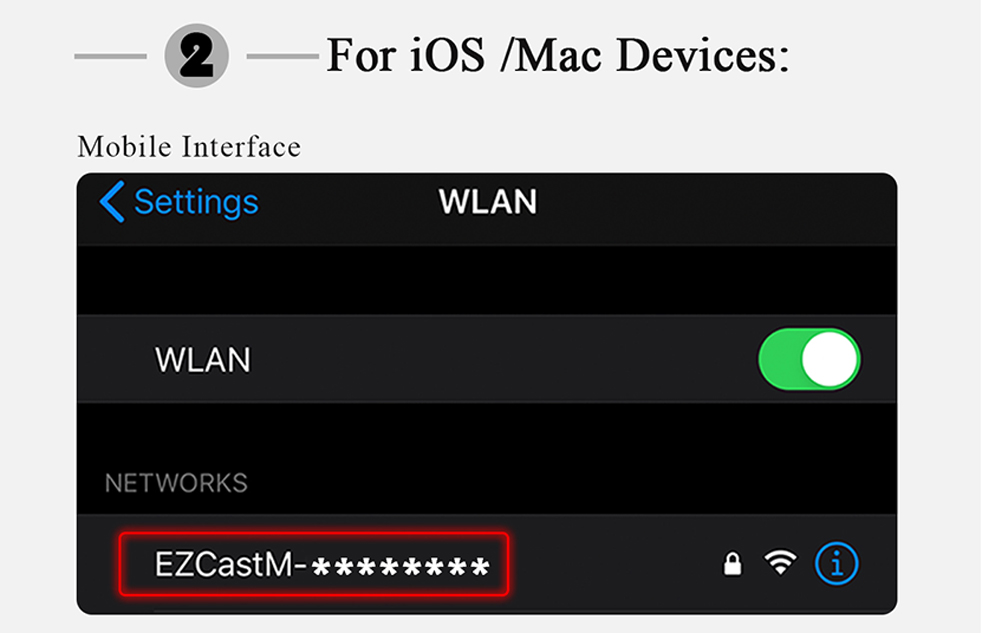

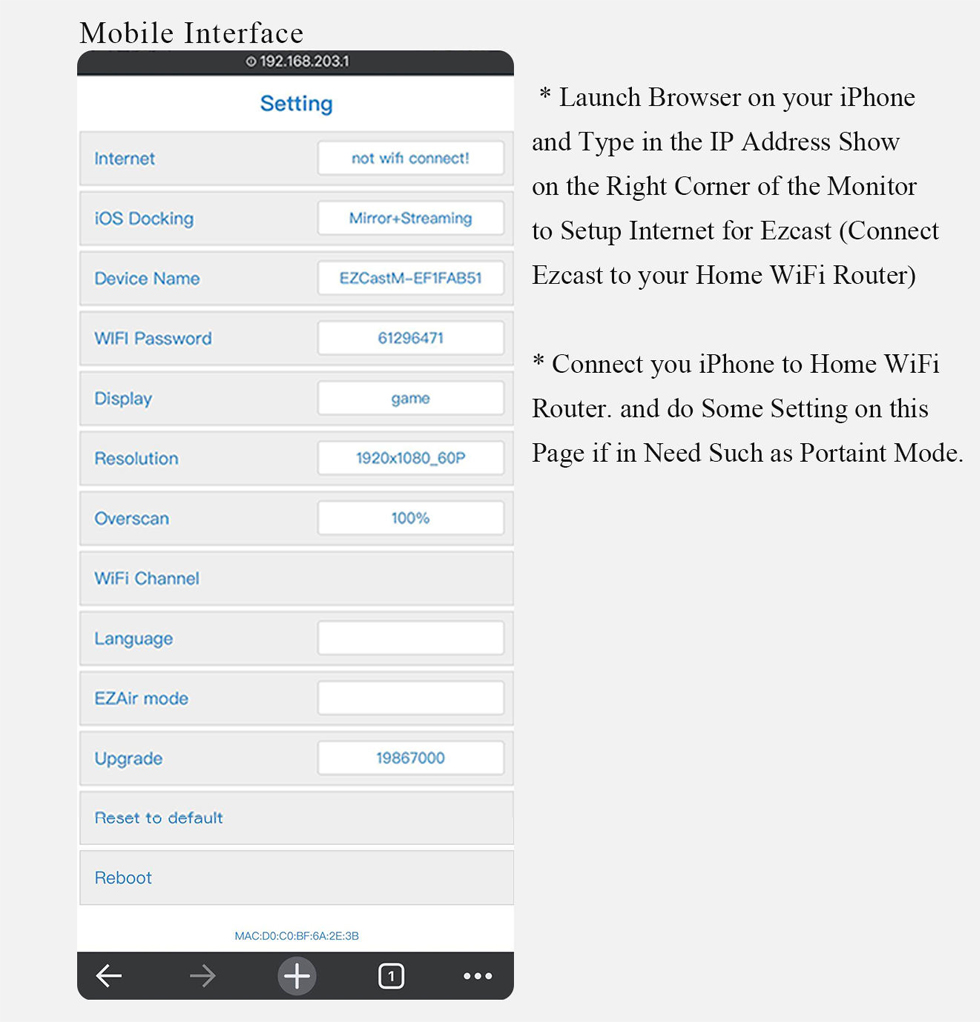

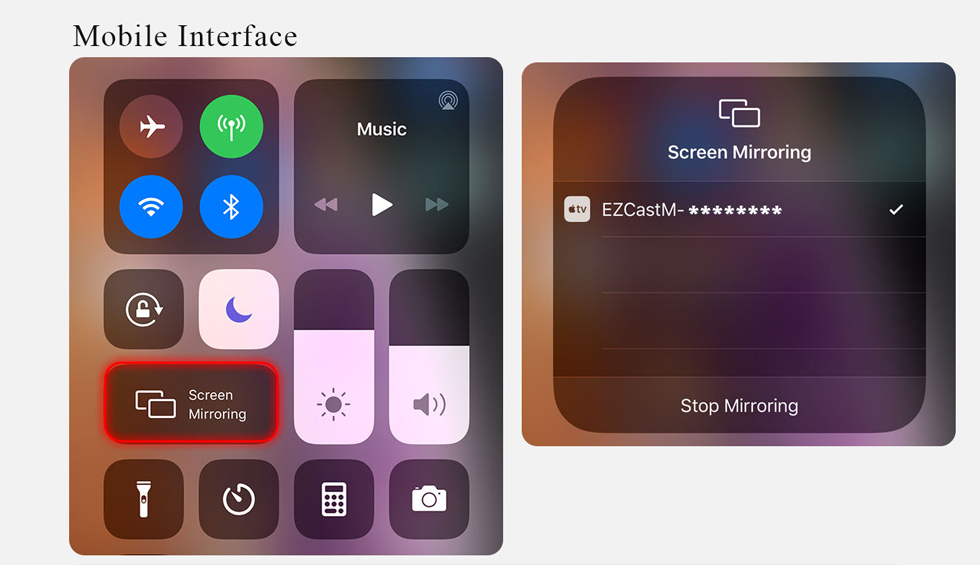

* Connect your iPhone/Ipad/Mac with Ezcast WIFI Name and Password Show on the Monitor

*  Swipe up on your iPhone and tap on AirPlay Mirroring, Then Select Ezcast as Target.

* Your iPhone/iPad/Mac Screen will be Shown on your Monitor.

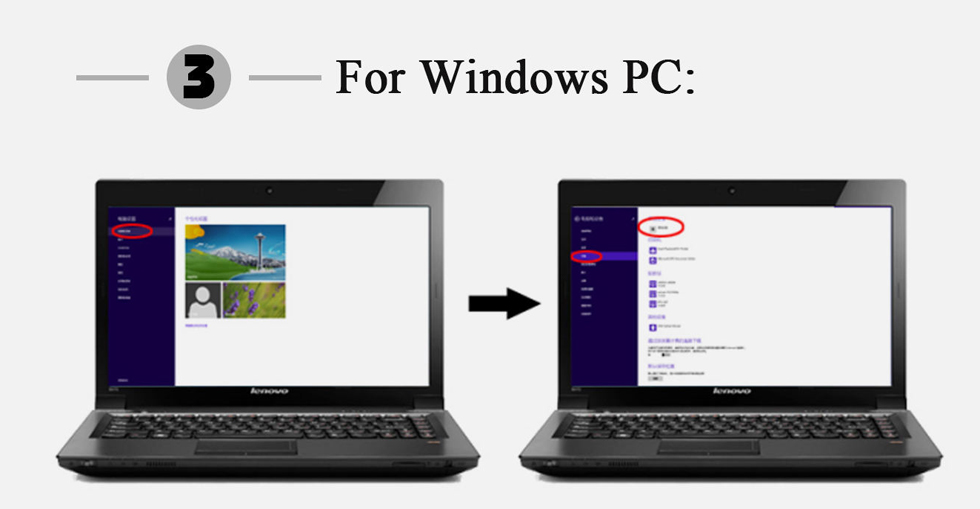

* Power on your Monitor

* For Windows 8.1, Execute "Windows Start Menu > Settings > PC and Devices >Devices> Add a Device",and then Search for Ezcast

* For Window 10, Execute "Windows Start Menu > Settings >Connected Devices > Add a Printer or Scanner”, and Then Search for Ezcast.

* Your Windows Screen will be Shown on your Monitor Through Ezcast Connection.

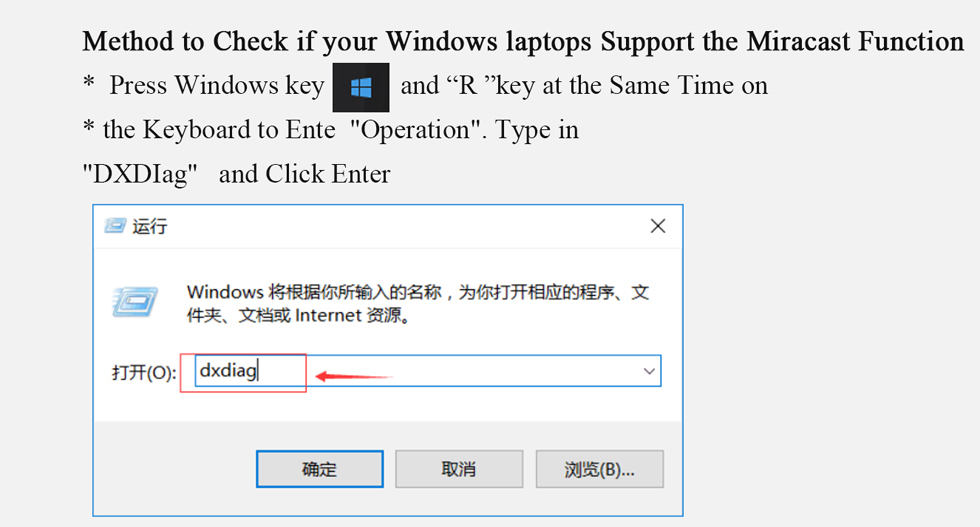

*  Click Save Information and Save the Relevant Information as Dxdig.txt(File format Choose txt)

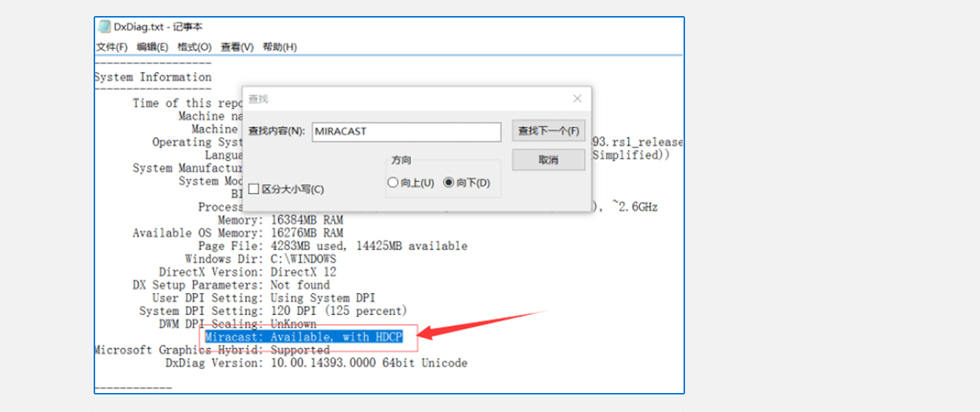

* Open the file Dxdig.txt and Mearch "Miracast" to see if your Laptop Supports Miracast.Details are Shown in the Picture Below:*Power with AC Adaptor If there‘s Power Shortage



Kindly Note:

• Please Read the User Manual or Contact our Seivice Team First if you do not know how to use.

• Please Check your Phone/PC is Compatible or not.

• Keep the Power(at Least 5V/3A) Connected During use.

• Not Compatible with the app that Requires Video License Copyright (HDCP),Like Netflix/ iTunes/ HBO Go/ Hulu Plus/ Honda Motor/ ESPN/ YouTube App and Other Video App.5g wireless portable monitor

Leave A Message
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
Submit
Related Products
wireless touch screen portable monitor 16 inch 5G touch screen wifi wireless HDMI portable monitor
5G wifi Wireless display Capacitive Touch Screen Portrait Screen Display Multiplatform Compatibility Versatile Digital Connection Both Wire or Wireless Connection for Optional

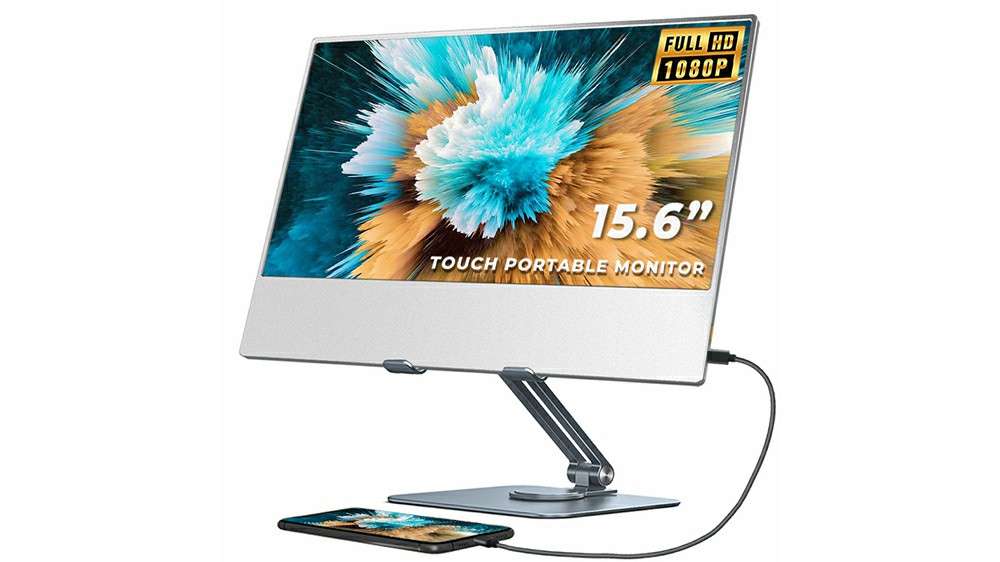

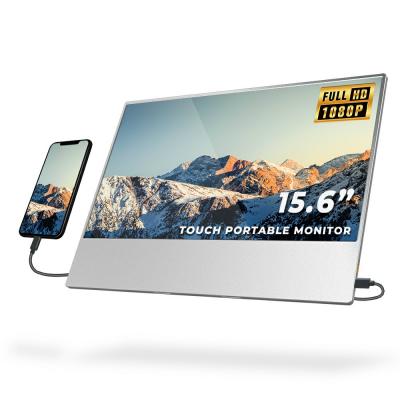

1080p Touch HD Portable Monitor Supplier Portable Monitor Touchscreen 15.6 1080P HDMI USB C Computer Display Ultra Slim Travel Second Monitor for Laptop
FHD touchscreen portable monitor: 15.6 inch 1920 x 1080P (262K (6-bit)) with HDMI & USB Type-c inputs With One Cable: Usb Type-c Input Transmits Audio And Video Signals Faster Easy-to-Carry: light-weighted 747 g, Ultra-slim 5 mm, the best workmate on the go Various application: Switch, PS4, XBOX, Laptop, Camera, Raspberry pi, MiNi PC

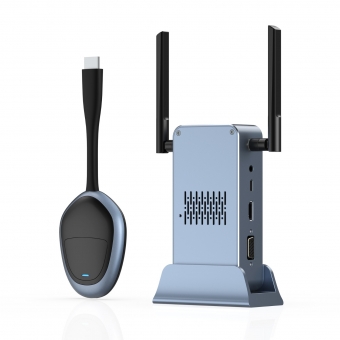

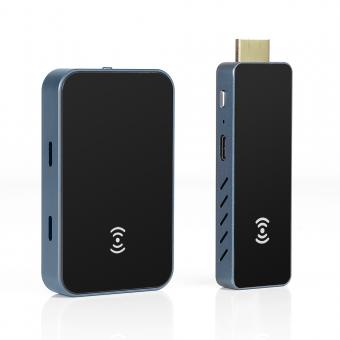

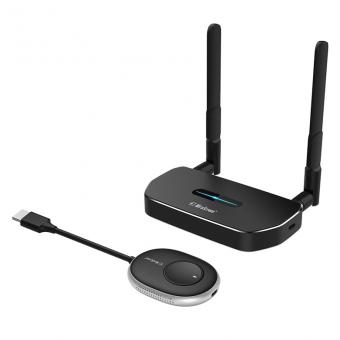

Wireless HD Transmitter supplier Wireless HDMI Transmitter and Receiver 5 m FHD Extender Video Audio from Laptop Phone to Projector TV for Gaming 0 Latency
SIBOLAN Wireless HDMI transmitter receiver kit is designed to wirelessly transmit HDMI or USB-C (Lightning) audio and video signals from HDMI or USB-C (Lightning) sources to HDMI displays within a direct line of sight within 5 meters with zero delay! Experience 1080P@60Hz video resolution with zero latency, making it a perfect device for desktop or presentation applications and games. It supports high-definition digital audio formats such as Dolby, True HD, and DTS-HD, so users do not have to sacrifice viewing experience for convenience. Why choose SIBOLAN Wireless HDMI Transmitter Receiver Kit instead of WiFi display dongle? No latency No compress No interference Wide transmission bandwidth High transmission speed Plug-n-Play Does not need WiFi or App Convenient to Use 1 Receiver To 7 Transmitters Maximal
60Ghz Wireless Millimetre Wave HDMI Transmitter and Receiver manufacturer Wireless HDMI Transmitter and Receiver 30 m FHD HDMI Extender Video Audio from Laptop Phone to Projector TV for Gaming 0 Latency
Perfect for gaming, home theater, office meetings, education, vlog or conference 30m ultra long distance transmission High Transmission Speed 0 latency 60Ghz Millimetre Wave Technology Wide Transmission Bandwidth Plug-n-PlayWide transmission bandwidth Large quantity, more favorable price, Learn more
15.6 inch portable Type-c hdmi gaming lcd monitor supplier 15.6 inch portable Type-c hdmi gaming lcd monitor
FHD 1080P IPS Screen Single Type-C Connect to Signal & Power Upgraded Configuration & Eye Care Smart Cover & Screen Protector Versatile Digital Connection
digital active stylus pen 4096 Pressure Painting Touch Digital Active Stylus Pen for ipad
4096 pressure No pairing required type-c

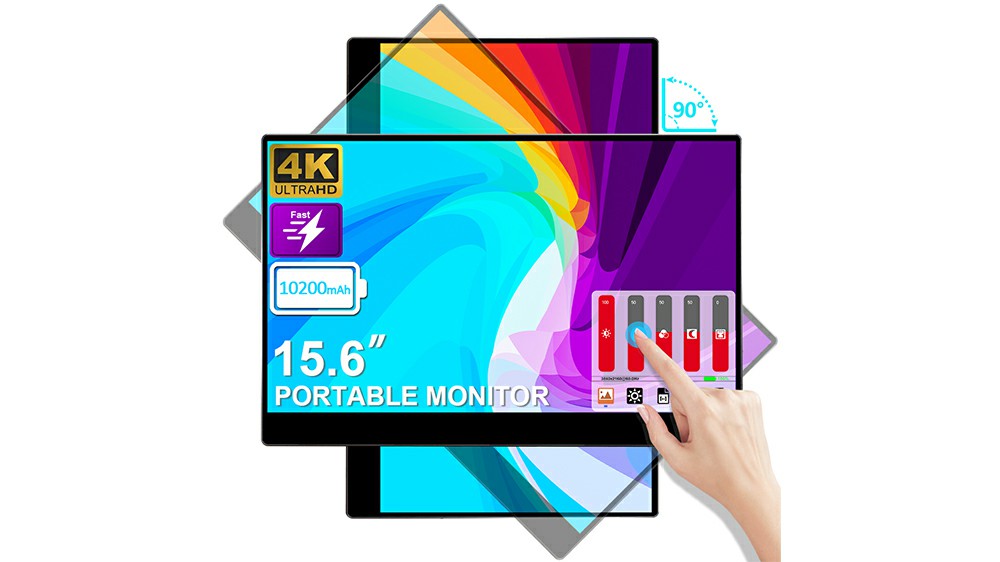

4K High type-c ips portable touch screen dual monitor supplier SIBOLAN 15.6 inch HDR Thin 4K Portable Touch Screen Monitor
