SIBOLAN 5mm ultra-thin Capacitive 10 points touch 15.6 inch 1080p support mini HD portable touch dual screen monitor factory OEM ODM
(Note: While connect your device via Type-C port, Please check if the Type C of your laptop/phone is a full featured Type C port. Your device should support thunderbolt 3.0 or USB 3.1 Gen2 Type C DP ALT-MODE. If it is just a Type C for charging, it will not be available.)
Model |
5 mm Ultra-thin touch screen portable monitor |
Panel Type |
15.6 inch a-Si TFT LCM (16:9 Wide) LED Backlight |
Resolution / Color Depth |
1080P, 1920(RGB)×1080, FHD, 62% of sRGB, 262K (6-bit) |
Touch Screen |
10 points Touch Screen On-Cell Technology; Capacity with Win10, phone |
Active Area |
344.16 x 193.59 mm |
Pixel Pitch |
0.05975 x 0.17952 mm |
Viewing Angle(U/D/L/R) |
85/85/85/85 (Typ.)(CR≥10) |
Contrast Ratio |
800:1 (Typical) |
Flat Ratio |
16:9 (H:V) |
Brightness |
250(cd/m2) |
Vertical Frequency |
60Hz |
Monitor Housing |
High Quality Aluminium Alloy Material ,With Narrow border design |

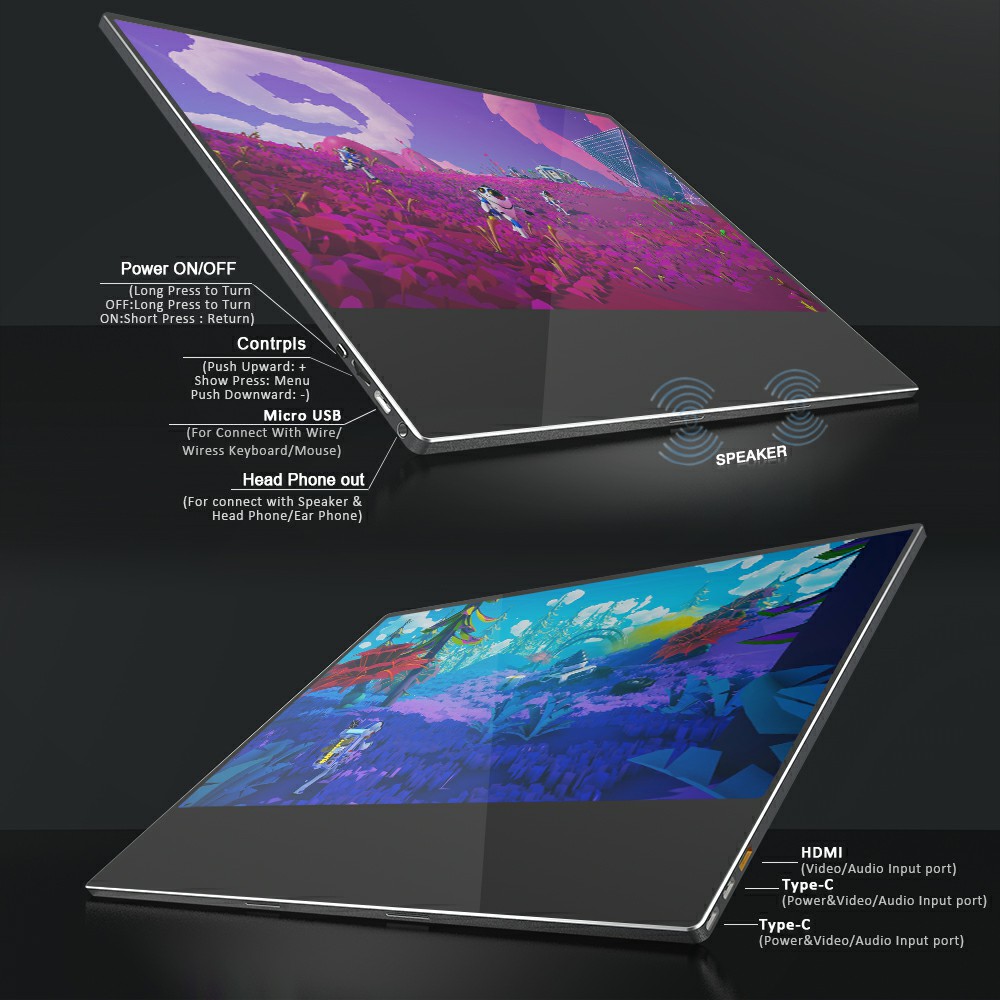

Connectivity |
1*HDMI Mini Port |
2*Type C Port( For Power and video data transfer) |
|
1*Head Phone Port (3.5MM) |
|
1*Micro-USB port(For connect with keyboard & Mouse) |
|
Compatible |

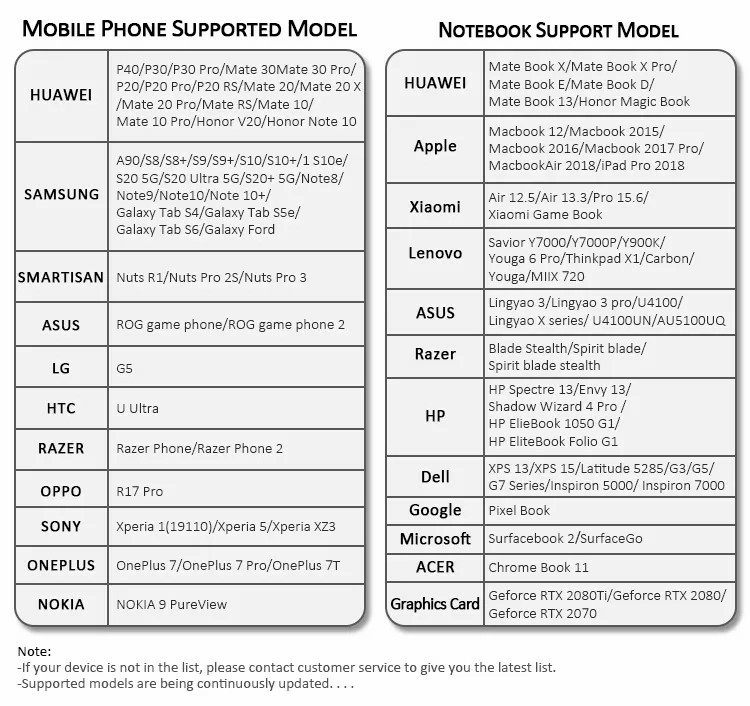

Various of USB Type-C/HD devices: For Mac, Smartphone, Switch, Xbox One, Xbox 360, PlayStation 4, PS4 pro, PlayStation, PC etc... |
Speakers |
2 x 1.0 W(Max.) |
Rating Voltage |
5V-2A; |

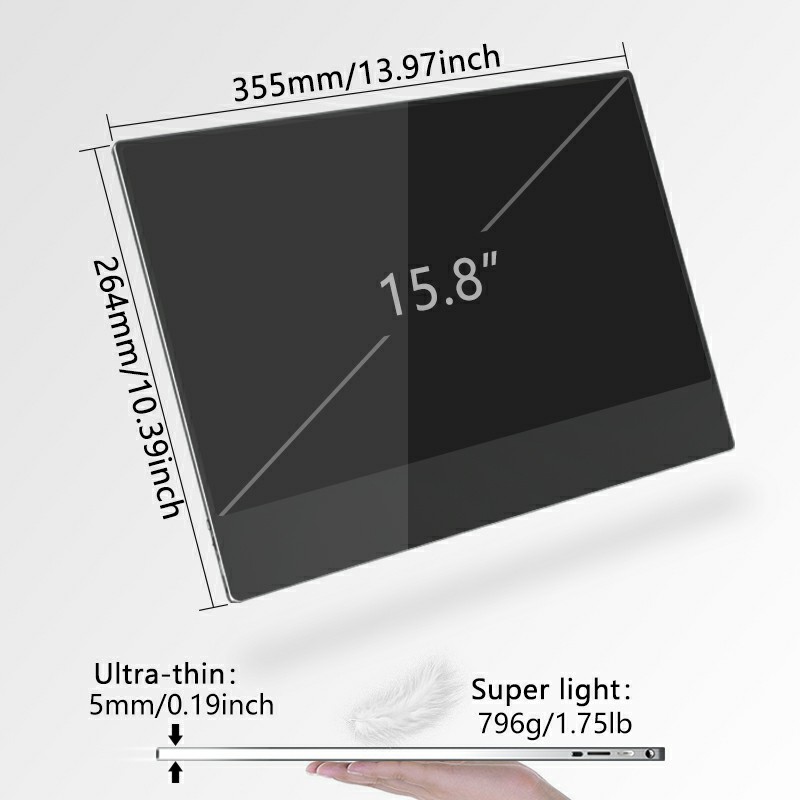

Dimension(W/H/T) |
355*264*5mm |
Weight |
796g |
Note |
Design and specifications are subject to change without prior notice. |
Shipment information |
Color Box Size: 40*27*8cm, Weight: 2.5Kg |
Carton Size: 42*40*60cm, Weight: 23Kg/CN, (10Pcs/CN) |

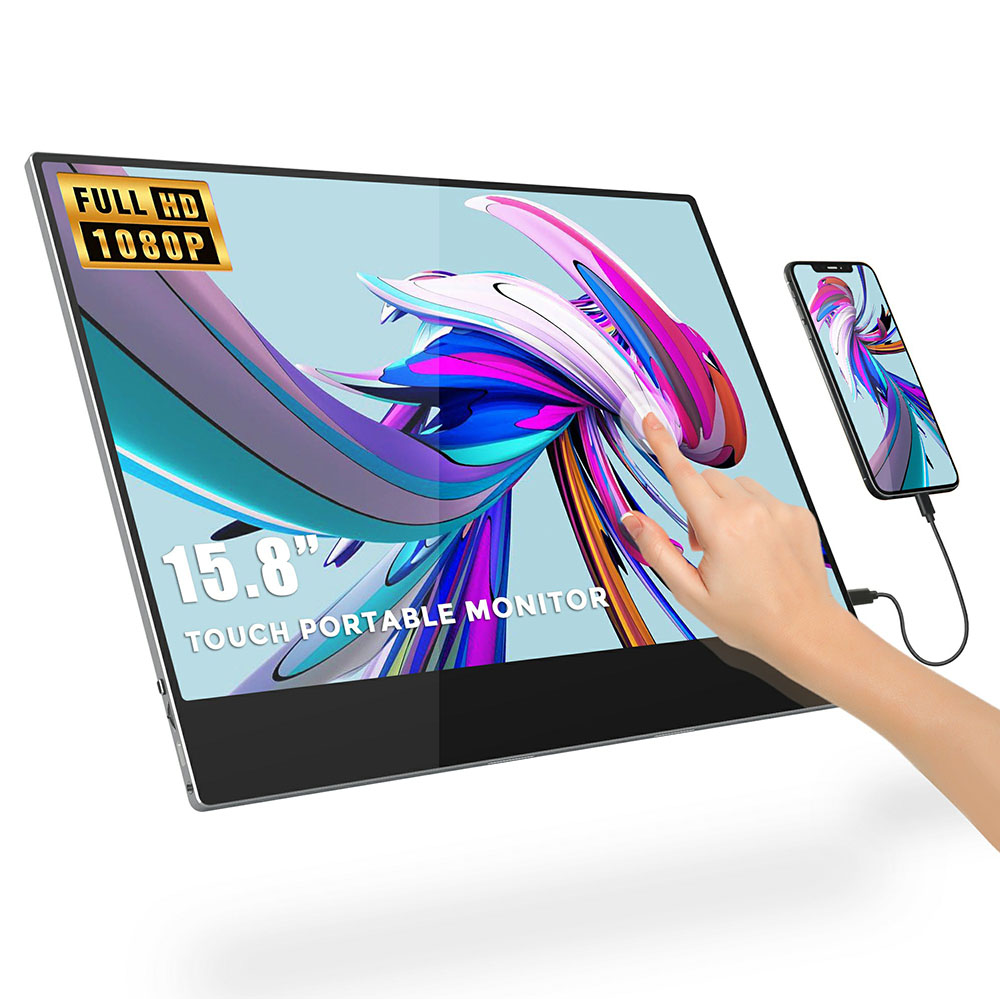

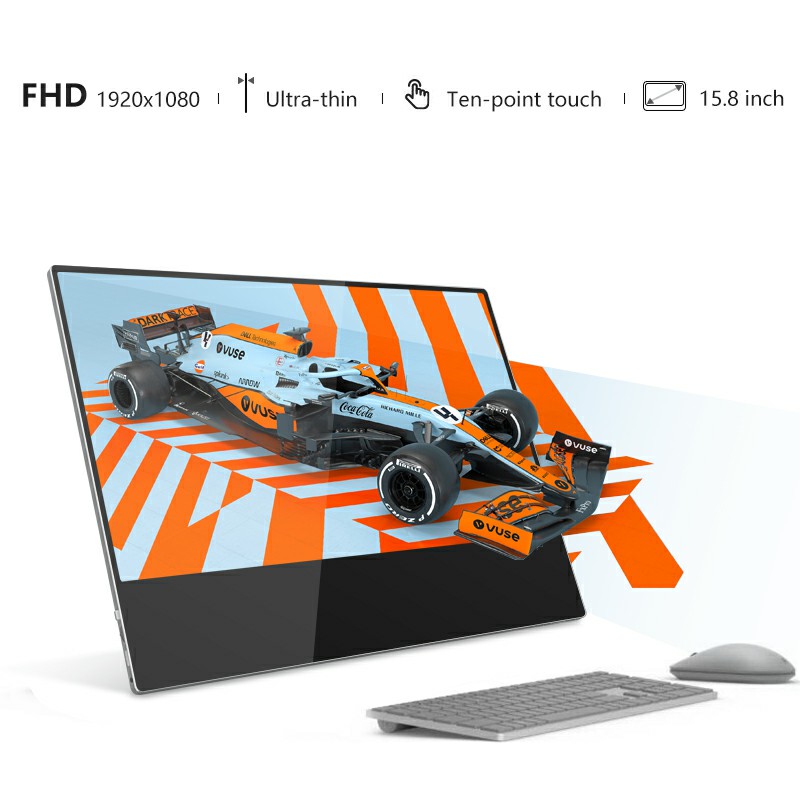

15.6 INCH TOUCH SLIM PORTABLE MONITOR

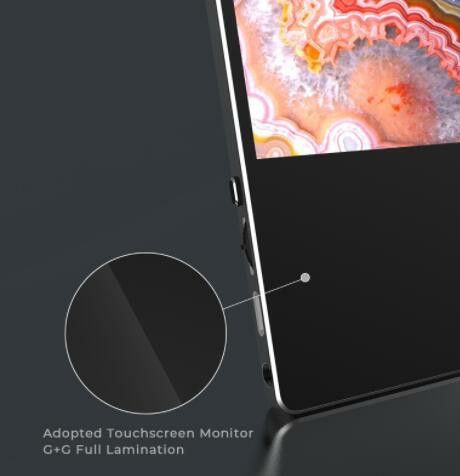

Adopted 10 point touch Monitor On-Cell Touchscreen support much more precise and sensitive touch, no extra driver needed, just connect the USB cable to your device to achieve the touch function.
(Note: All gaming device and mobile phone without full featured type-c function can not get touch function.)

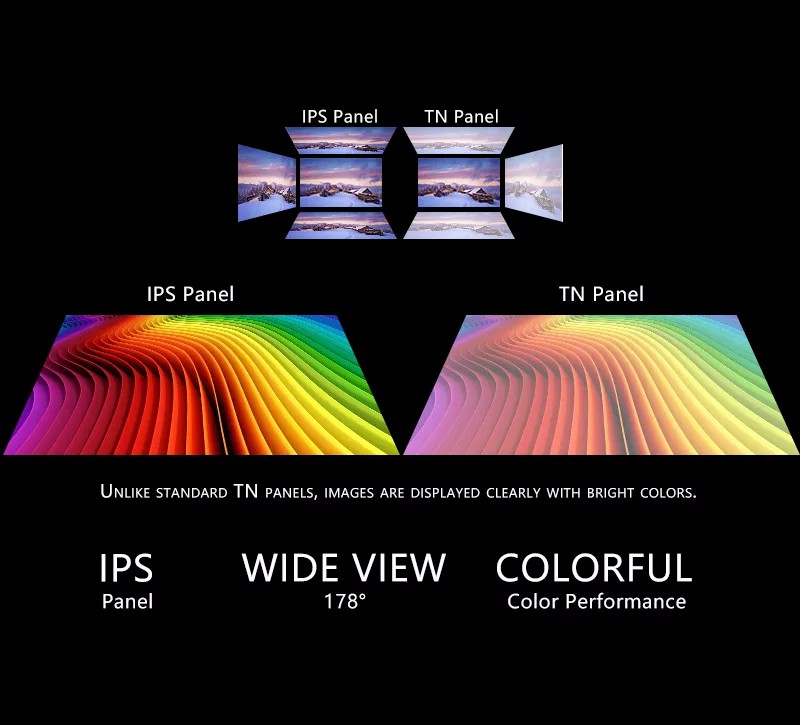

USE HIGH-PERFORMANCE IPS PANEL
Due to the IPS-based panel, the color and contrast changes are not easy to occur from all angles, and the image is clearly displayed.Wide viewing angle of 178° up, down, left, and right.

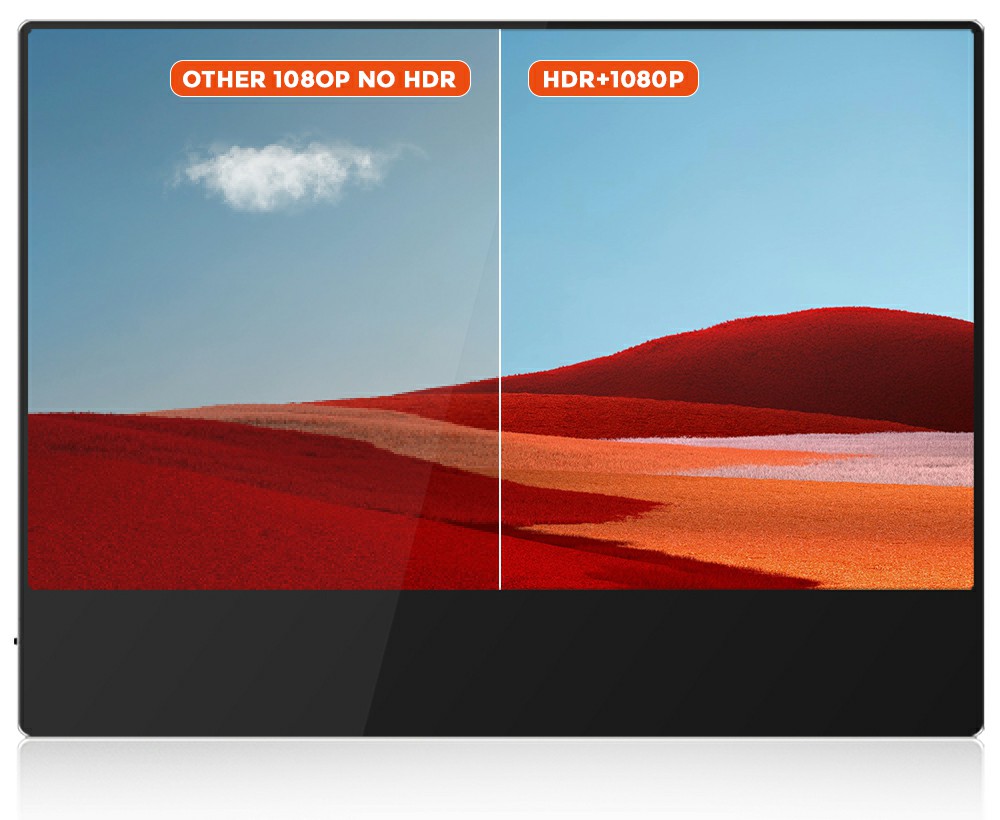

1080P RESOLUTION + HDR
It preserves details in the darkest and brightest scenes, and delivers better contrast as well as more vibrant colors. HDR portable monitor delivers a vivid image and truly immersive viewing experience with stunning 1920 x 1080 resolution visuals & awesome color reproduction. It equipped with HDR (High Dynamic Range), which is a technique to reproduce a greater dynamic range of luminosity.
![]() |
![]() |

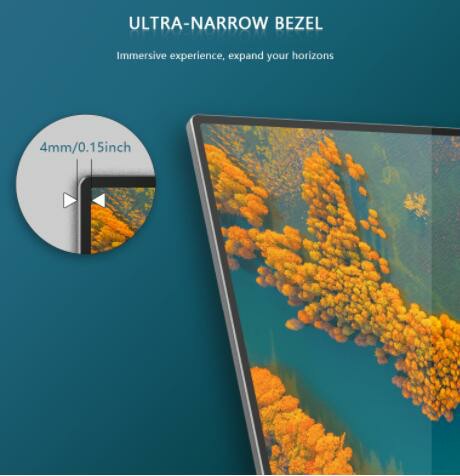

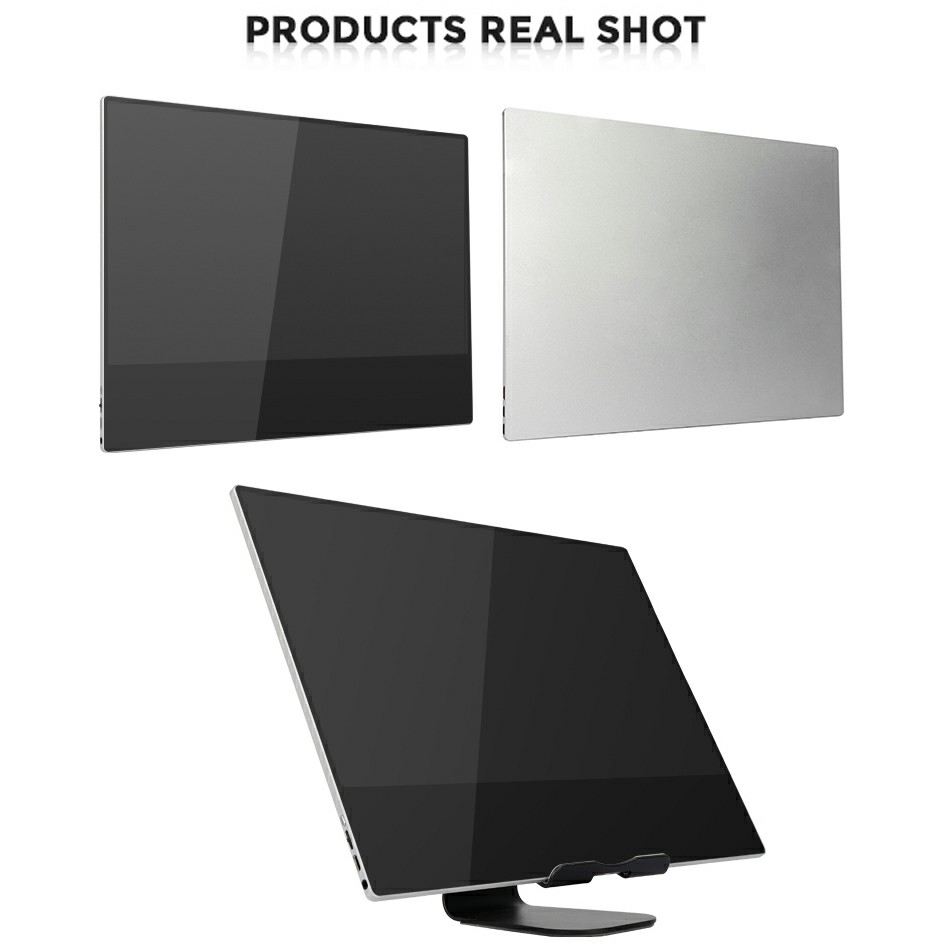

ULTRA-NARROW BEZEL Immersive experience, expand your horizons. |
APPEARANCE MATERIAL The aluminum-magnesium alloy material makes the display more sturdy and lighter, making the display full of texture and eye-catching. |

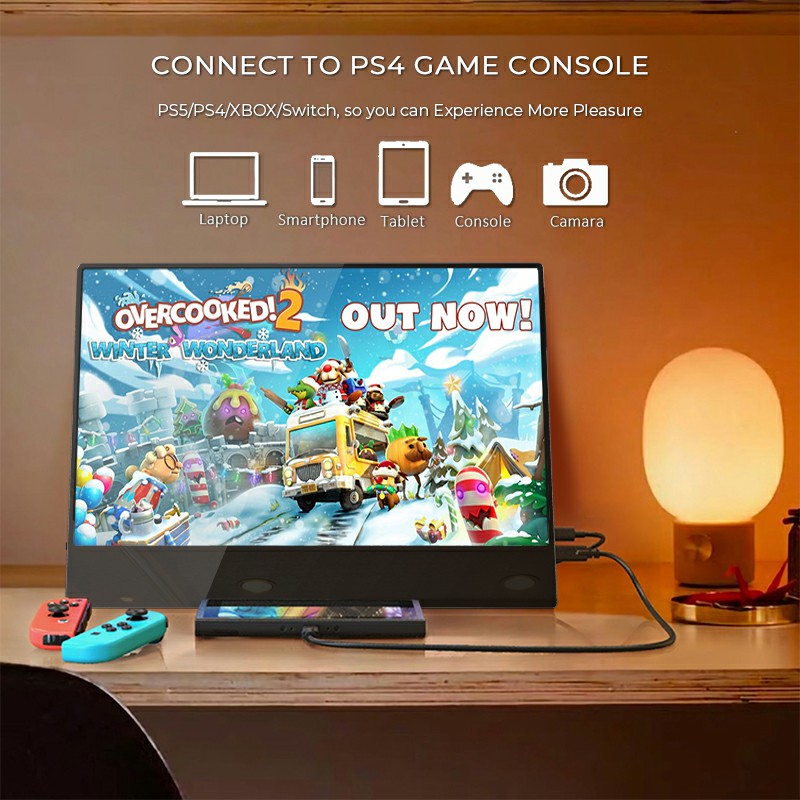

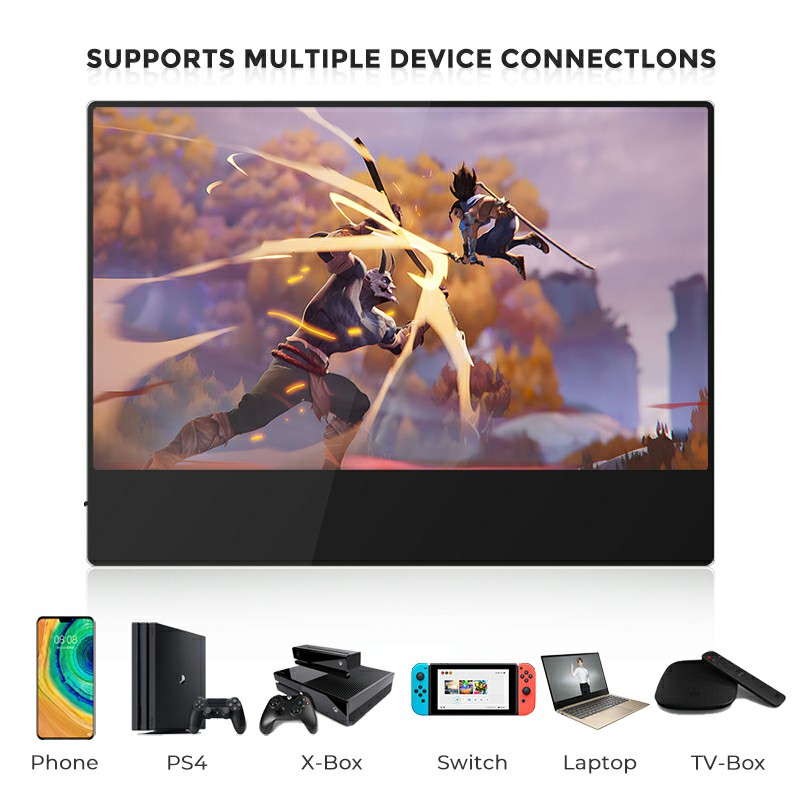

CONNECT TO PS4 GAME CONSOLE
PS5 / PS4 / XBOX / Switch, So you can Experience More Pleasure.

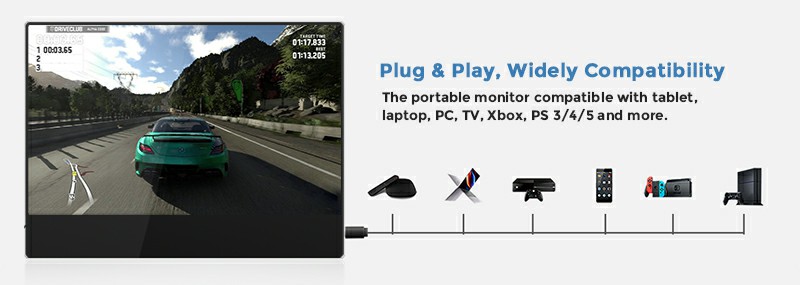

Note: Support various of devices with HDMI output, thunderbolt 3.0 or USB 3.1 Gen2 Type C DP ALT-MODE, For Iphone/Ipad need prepare extra Lightning to HDMI adapter.
![]() |
![]() |

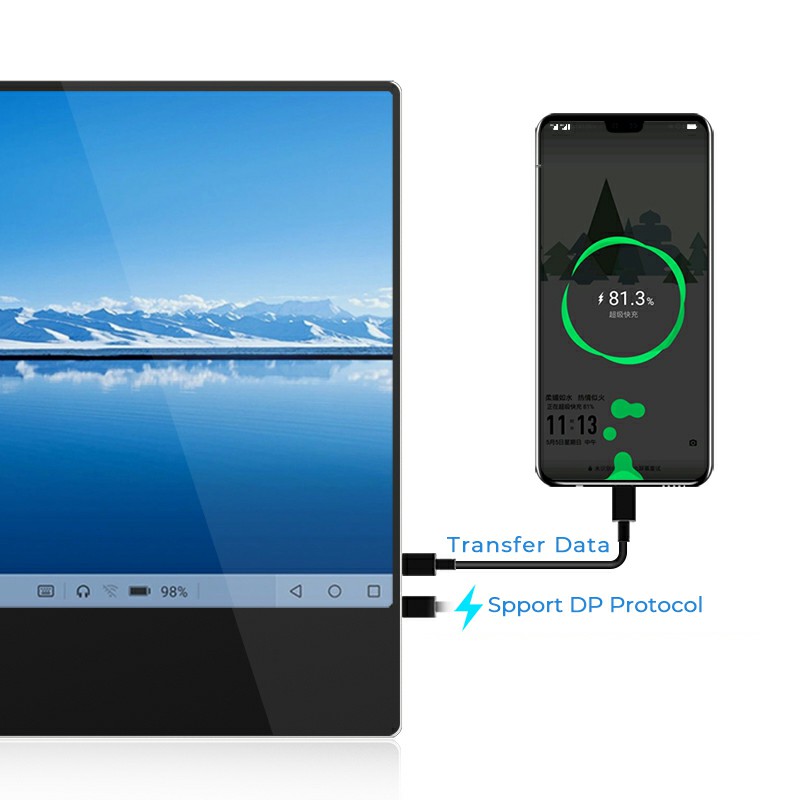

USB TYPE-C PORTABLE MONITOR When There is no External Power Supply, the Mobile Phone battery Supplies Power to the Monitor. When the External Power Supply is Connected, the Monitor Charges the Mobile Phone Through the External Power Supply. |

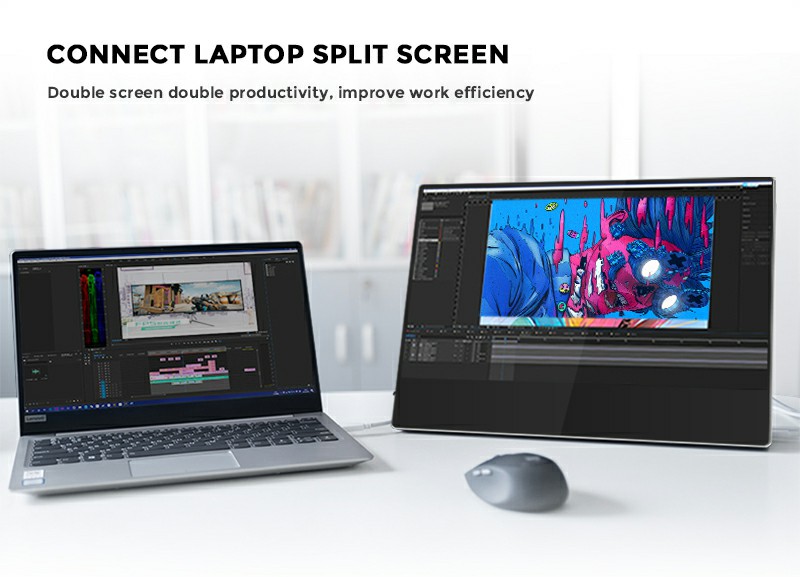

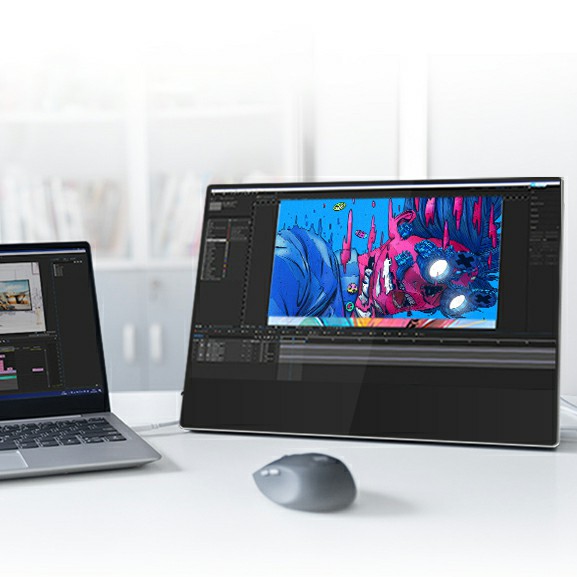

CONNECT LAPTOP SPLIT SCREEN Double screen double productivity, improve work efficiency. |
Note:

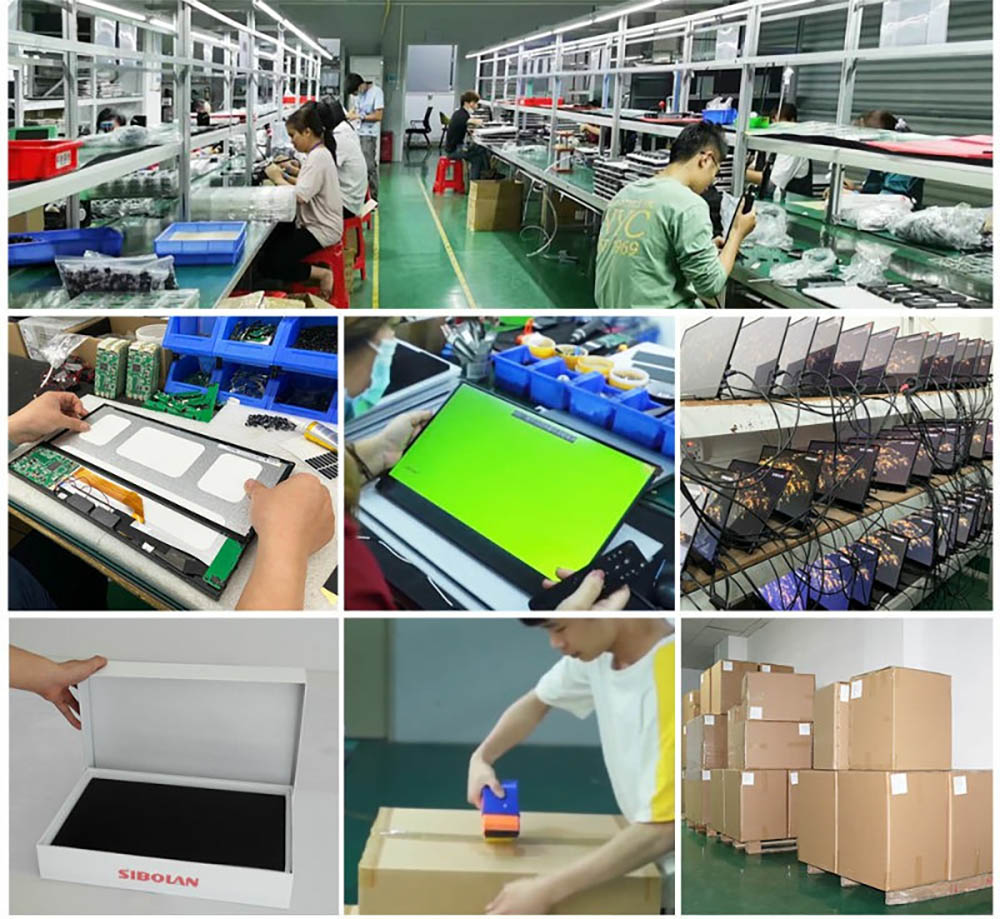

1.We attach great importance to product quality. We will test a series of performances of each product. Only the products that pass the test are eligible to be shipped to consumers.
2.A monitor recreates visual signals received from your Laptop /Computer/Phone.Therefore, please confirm that your device has a corresponding interface that support video signal transmission.
3.If you use Type C cable to connect, please make sure that the Type C interface of your device supports video and audio signal transmission.Otherwise, the monitor will not be able to display.
4.After the power is connected, logo show up(Unless you customize the startup logo, the screen will appear blue.), the screen show "No signal", and the sidelight turn red. There is no image on the screen. This is a normal phenomenon. Because the monitor does not receive the video signal from your device.
5.This portable display has a maximum brightness of 220 nits and No built-in battery.
6.Please use a power adapter in the package to power the monitor. So that it will save your last settings.
7.The monitor can work with an iPhone, but you will need to purchase an additional Lighting to HD adapter.
8.We have a professional service team to provide one-to-one after-sales service. If you have any questions, please contact with us.
What’s in the Box?
Free accessories include:
1*15.6 inch 1080P Portable Monitor
1*Mini HDMI to HDMI Cable (For data and video transmission)
1*USB-C to USB-A Cable (For power supply only)
1*USB-C to USB-C Cable (Full-functioned)
1*5V 2A Adapter
1*User Manual
Optional Accessories with extra cost: Leather Case*1+10$
(For Optional Accessories, pls contact with us for more detail.)
