The First Battery Powered Portable Monitor support PD Fast Charging Input and Output, Reverse Charge Laptop Voltage Up to 19V
Brand:
SIBOLANItem NO.:
S19b-5Product Origin:
CHINAColor:
SilverShipping Port:

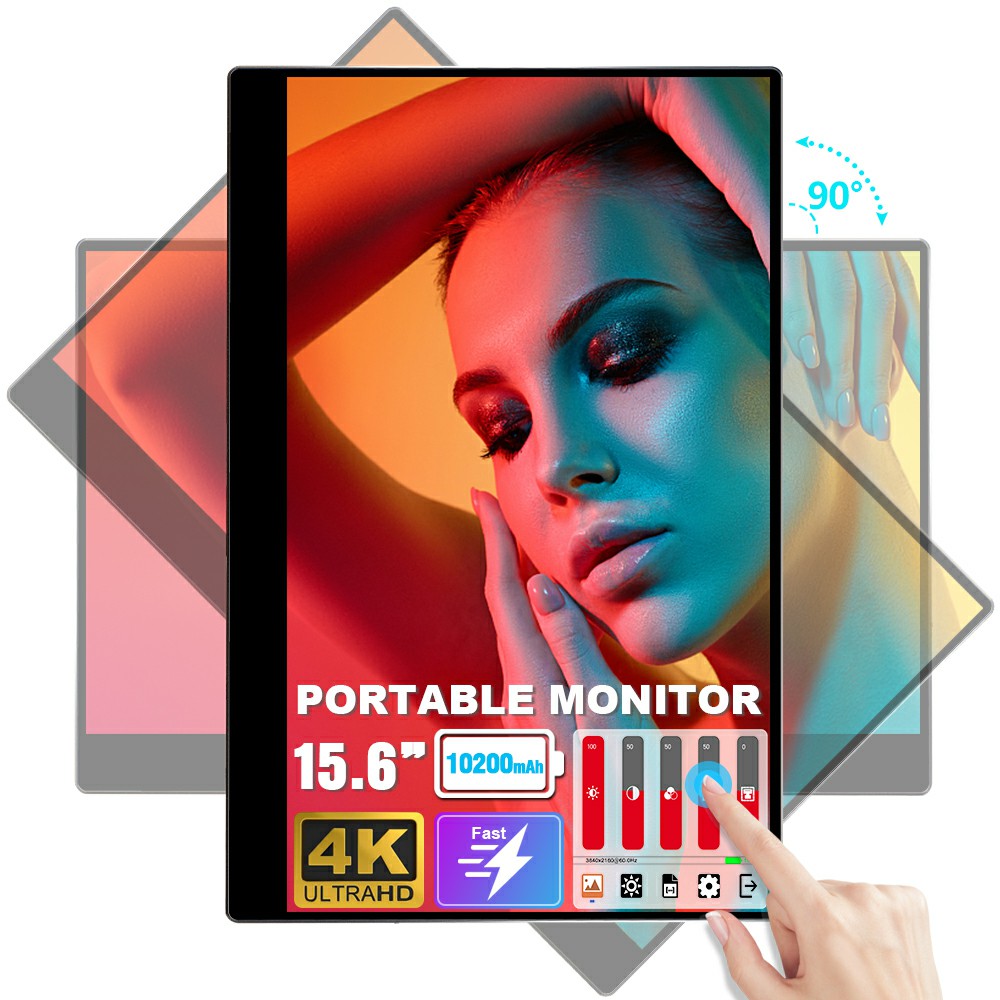

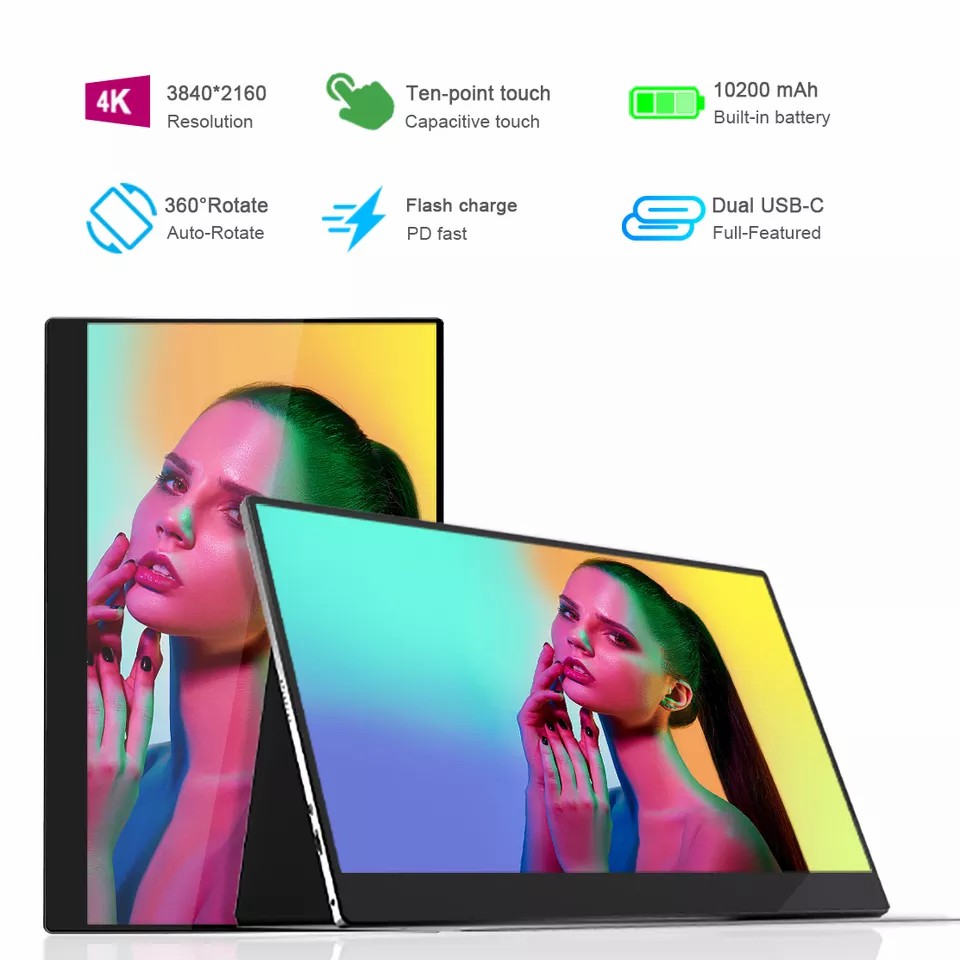

Shenzhen15.6 Inch 4k Touchscreen Auto-Rotating Portable Monitor with Built-in Battery support PD 45W Fast Charge
【Gravity Sensor Automatic Rotation】
When connected to the mobile phone or laptop, the monitor will sense product direction, and automatically switched display into horizontally or vertically according to the product's position, which improves the work efficiency and entertainment more humanely.
(Note: The monitor will take around 5s to sense product direction, and it can only rotate 90 degrees at a time. If it does not rotate correctly, please retry again or reset the rotation on the menu.)
【PD 45W Fast Charging Non-Stop Charging】
Supporting the PD fast charge function with a maximum power of 45W. While using the monitor, it can simultaneously powers Mac Book, laptop, smartphone or game console up to 19V voltage.
【Built-in 10200mAh Rechargeable Battery Travel Monitor】
The 3400mah (11.4V) large-capacity battery is equivalent to the conventional battery 10200mah (3.8V) and supports PD fast charging protocol USB C portable monitor built-in 10200mAh polymer battery not only provide power supply for the monitor to work, but also can be used as power bank to reverse charge mobile phones. Once fully charged could last for up to 4-8 hours depending on your volume and brightness setting and the usage
(i.e. videos and animated content played on screen consumer battery more quickly than a static screen. All data is tested under the working condition of the display brightness is 50, please allow for errors.)

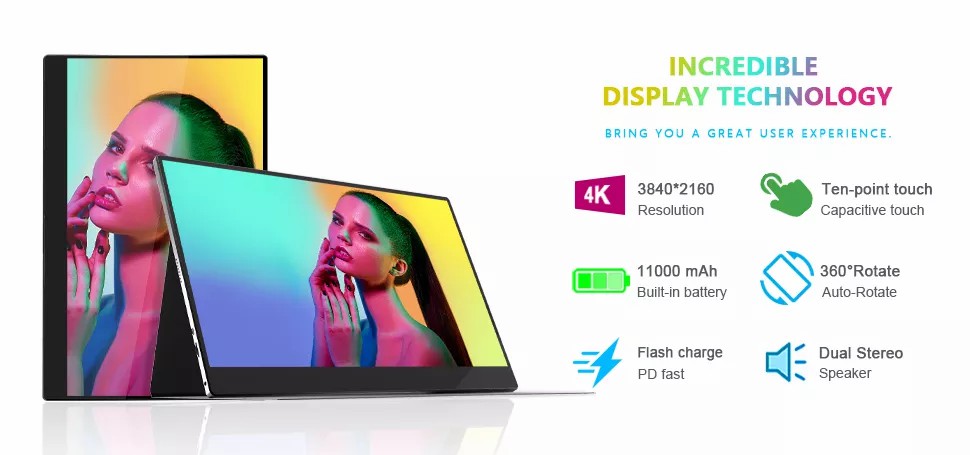

【Stunning 4K Ultra HD Portable Display】
Perfect Portable Monitor adopts a 3840 x 2160 IPS A-grade screen. This perfect Gaming Monitor delivers you a vivid image, clear motion and detail with build-in FreeSync and HDR400 feature, 1500:1 Contrast Ratio, 178° viewing angle, 60Hz refresh rate, fast response speed. 600 nit brightness, 100% DCI-P3 color gamut, 1.07 Billion 10bit display colors, With this screen, feel the real world!Not only for the pro users but also anyone who cares about the text clarity, image colors and your eyes.10-bit panel can display 1.07 billion colors. Low Blue Eye Care tech minimizes blue light to reduce eye strain.
【10-point Capacitive Touchscreen Monitor】
Adopted G+G technology, Goodix brand IC, support much more precise and sensitive touch, no extra driver needed, just connect the USB cable to your device to achieve the touch function. Support window 10 system 10 point touch, Mac OS for single point Touch Screen(For version under 13.4 only, latest version could not support at present ) (For OEM/ODM order, There's also Mac os touch-gesture, Mouse Right, Page Flip for optional with extra cost )
(Note: All gaming device and mobile phone without full featured Type-C function, otherwise can not get touch function.)
Model | 15.6 inch 4K Auto-Rotating Battery Build in Touch PD Fast Charging Portable Monitor |
Mode |
Accelerometers (Gravity Sensor) inside enable the screen rotate automatically to portrait / landscape orientation according to the orientation of monitor. |
Built in Battery |
10200 mAh Polymer Battery |
Input Voltage |
PD 45W Fast Charging |
Output Voltage |
Up to 19V |
Touch Screen |
G+G Capacitive Goodix Brand IC Touch Screen with Full Lamination Technology |
Resolution / Color Depth |
4K, 3840(RGB)×2160, UHD, 100% DCI-P3 Cinematic Color Gamut, 1.07B (8-bit+FRC) |
Touch Menu |
On-Screen Touch Menu |
Panel Type |
TFT IPS LCD (16:9 Wide) LED Backlight |
Brightness |
600 cd/m2 (Typ.) |
Transmissive Contrast Ratio |
1500:1 (Typ.) |
Active Area |
344.218 x 193.622 mm |
Dot Pitch (HxV) |
0.02988 x 0.08964 mm |
Viewing Angle(U/D/L/R) |
85/85/85/85 (Typ.)(CR≥10) |

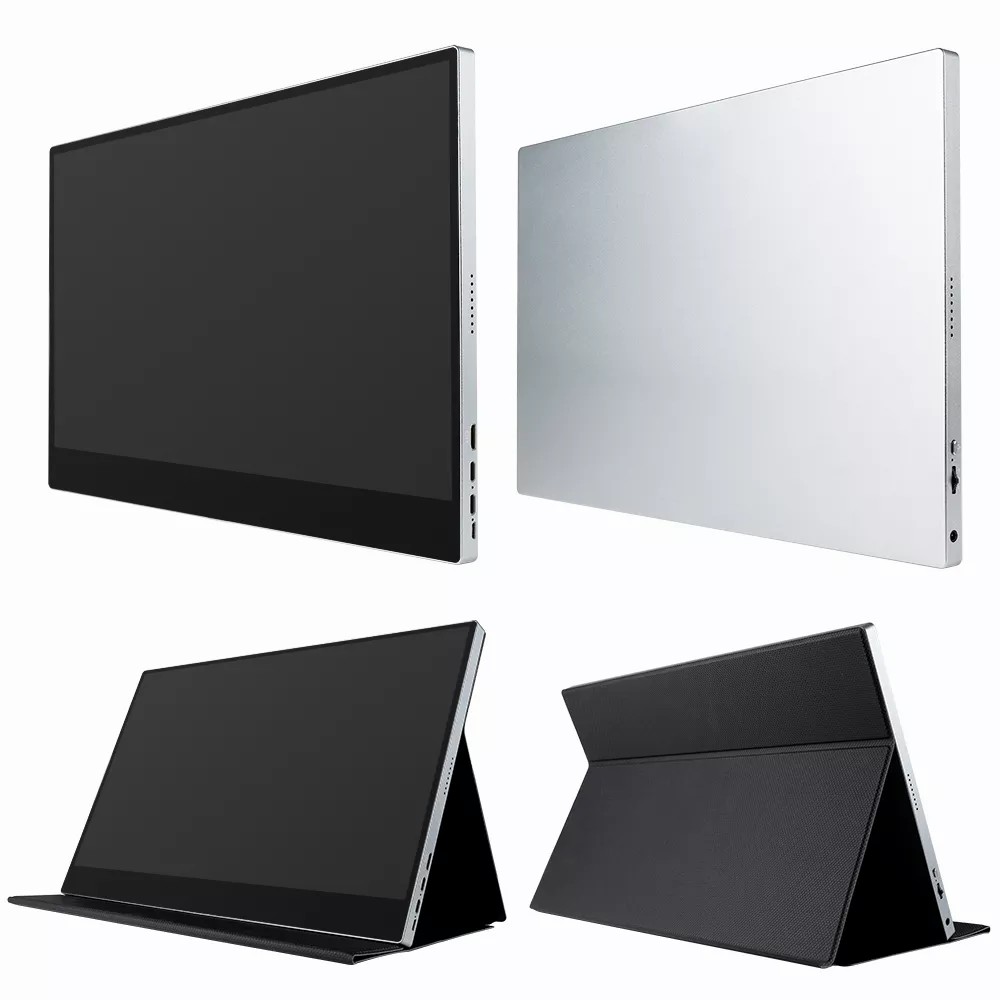

Monitor Housing |
High Quality aluminium alloy |
Design Feature |
Extremly Narrow Bezeless Design |

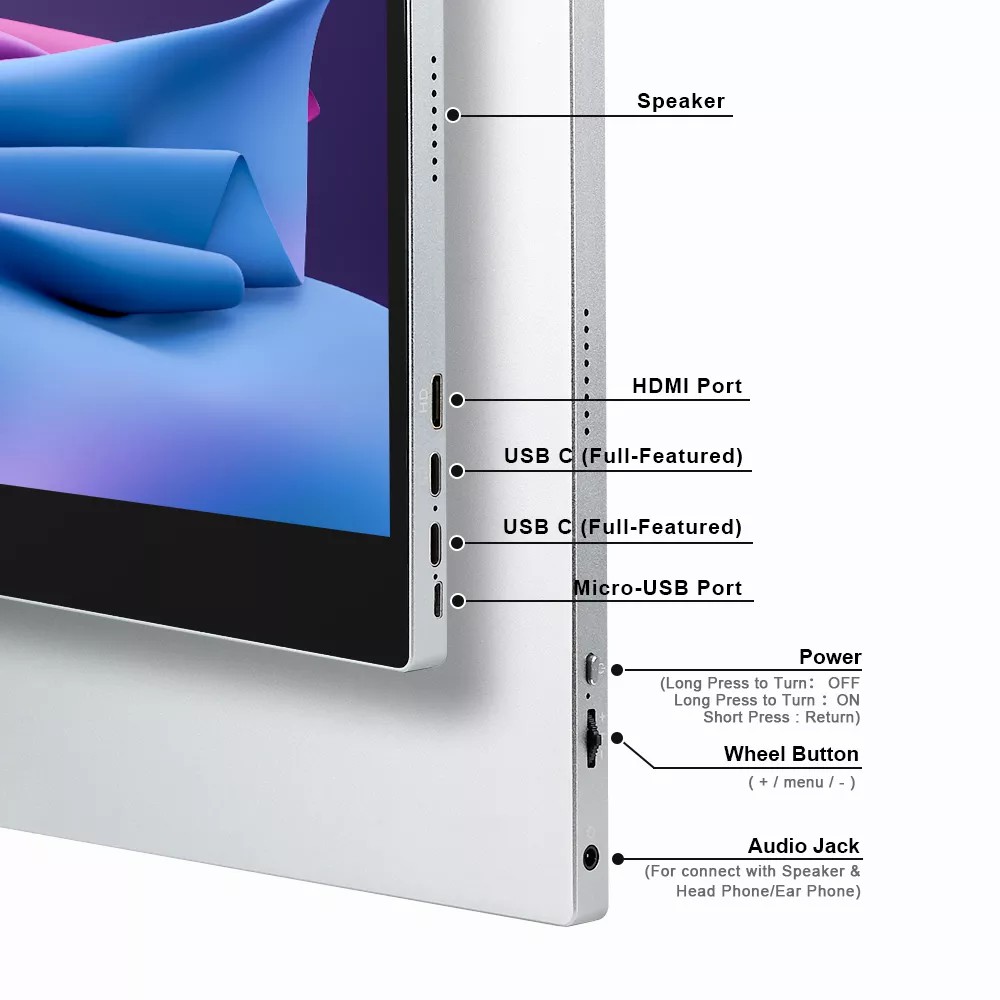

Connectivity |
1*Mini HDMI Port 2*USB-C Port ( For Power and Video Data Transfer) 1*Head Phone Port (3.5MM) 1*Micro-USB port (For connect with keyboard & Mouse) |
Compatible |

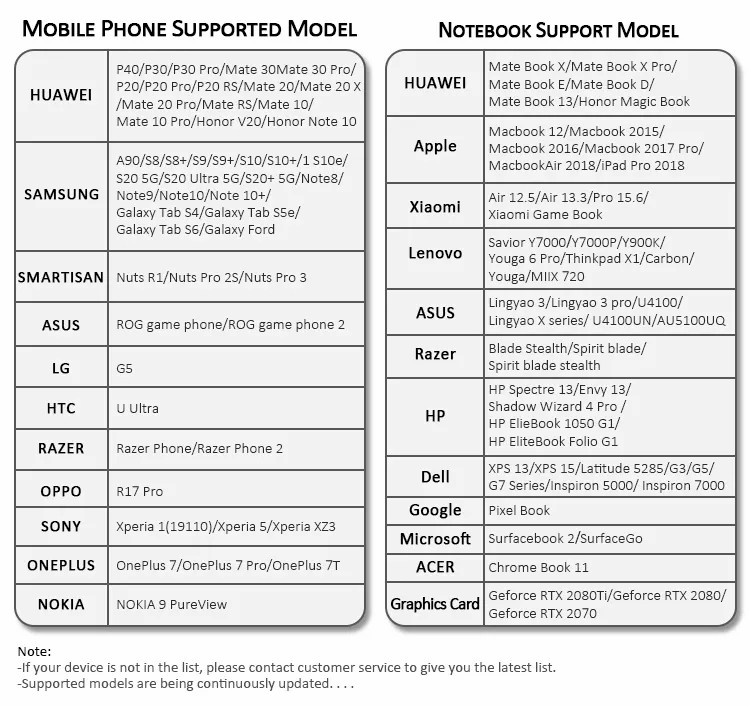

Compatible with various of HD and USB-C devices: Smart Phone, Laptop, For Mac, For Xbox One, for Xbox 360, for PlayStation 4, for PlayStation, Switch, PC and Mobile devices. |
Speakers |
2 x 1.0W(Max.) |

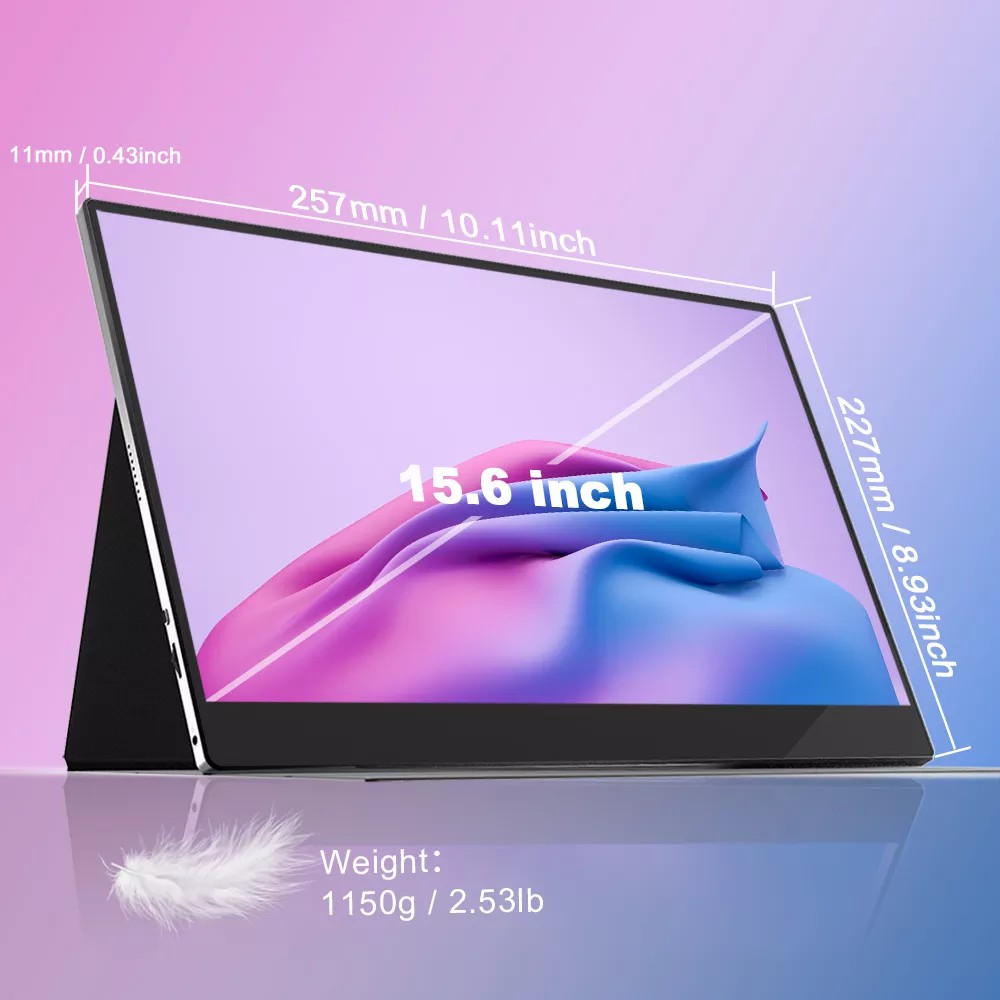

Dimension(W/H/T) |
357*227*11mm |
Weight |
1150g(Monitor Only) |

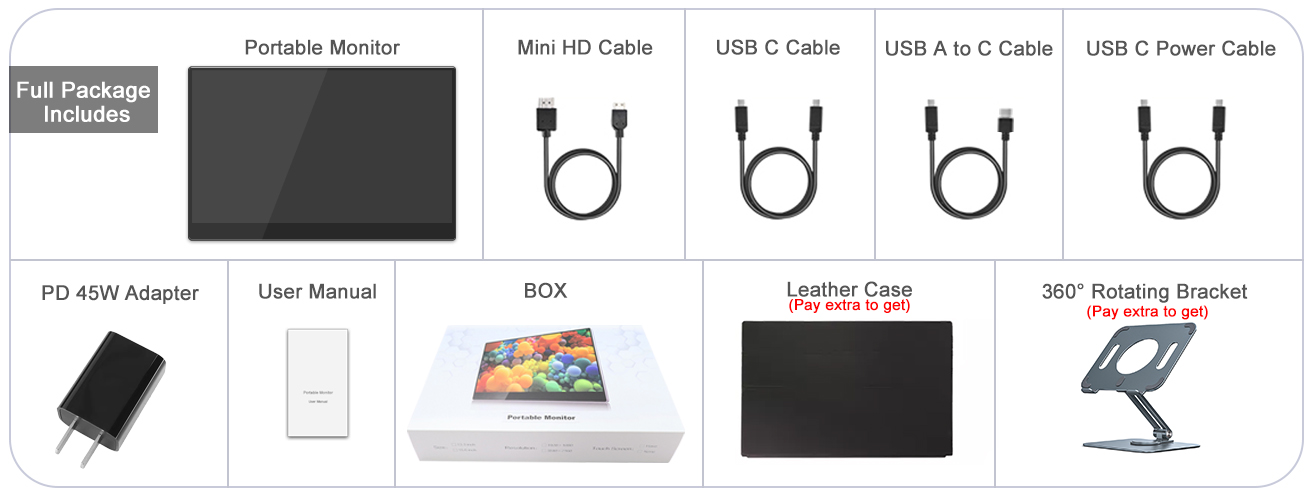

Standard Accessories |
HD cable*1 / USB-C to C cable*1 / USB A to C cable*1 / USB-C power cable*1 / PD 45W adapter *1 / User manual*1 |
Optional Accessories with Extra Cost |
Leather Case*1+$10 Stand for Monitor*1+$20 |
Shipment information |
Color Box Size: 40*27*8cm, Weight: 3.0Kg Carton Size: 56*32*42cm, Weight: 20Kg/CN, (8Pcs/CN) |
Note |
Design and specifications are subject to change without prior notice. |
4K Ultra High Game Portable Monitor SIBOLAN game portable external monitor 4K resolution makes images appear richer and more life-like in crystal-clear clarity and sumptuous details. Turning on HDR400 will make the image color fuller, Amazing Configuration The screen can present 10Bit 1.07 billion colors, the contrast is up to (1500:1), and the peak brightness can reach 600nit, perfect presentation Rich colors and the most realistic image quality, with wonderful details at a glance. As if the scene is right in front of you, so that the home theater has an excellent enjoyment.
Support PD 45W Fast Charge & Replaces Mobile Power
Built in Battery 10200mAh (11.1V) and supports PD fast charging protocol. Supporting the PD fast charge function with a maximum power of 45W. While using the monitor, it simultaneously powers Mac Book, laptop, smartphone or game console. The travel display can not only meet the power supply requirements of the display itself, but also power your cell phone or other devices that support PD protocol and have less than 5V voltage. With its battery & ultra-light body of 2.53lb, you can go out portable at any time and no longer worry about going out without a socket to power the device.

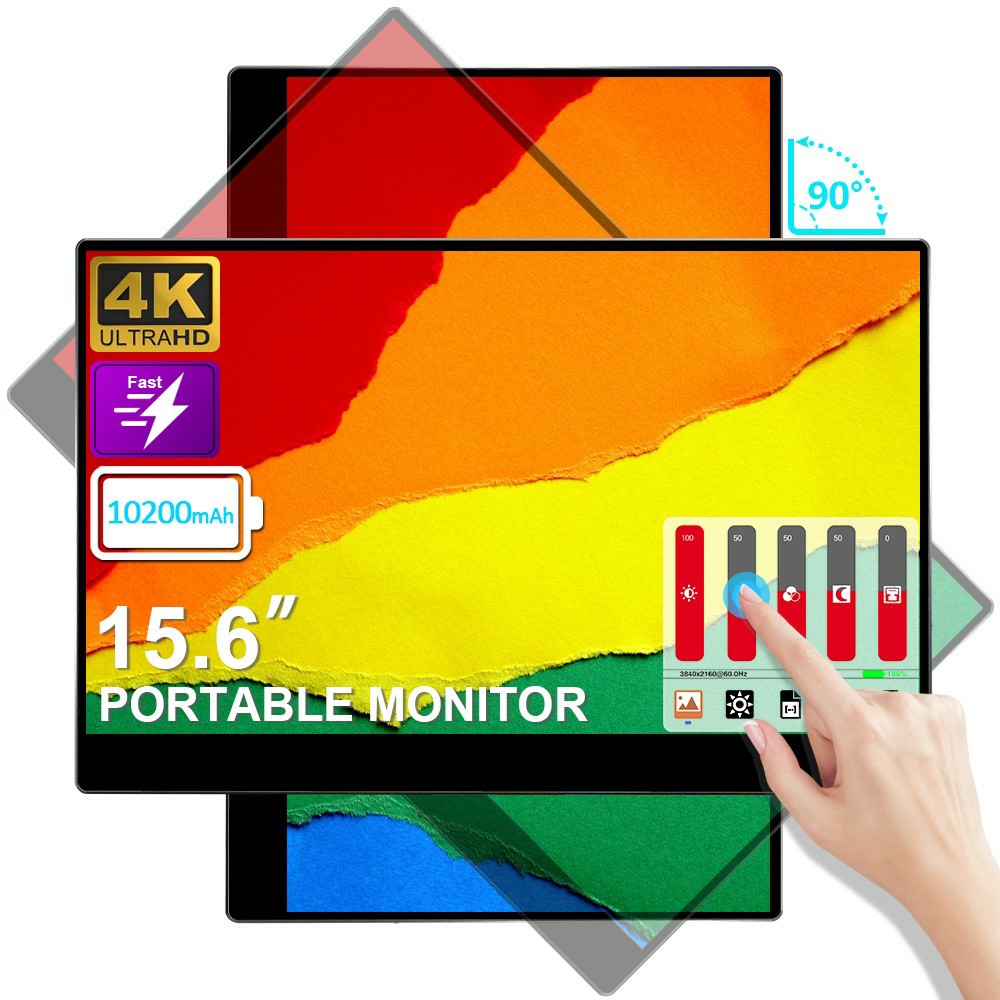

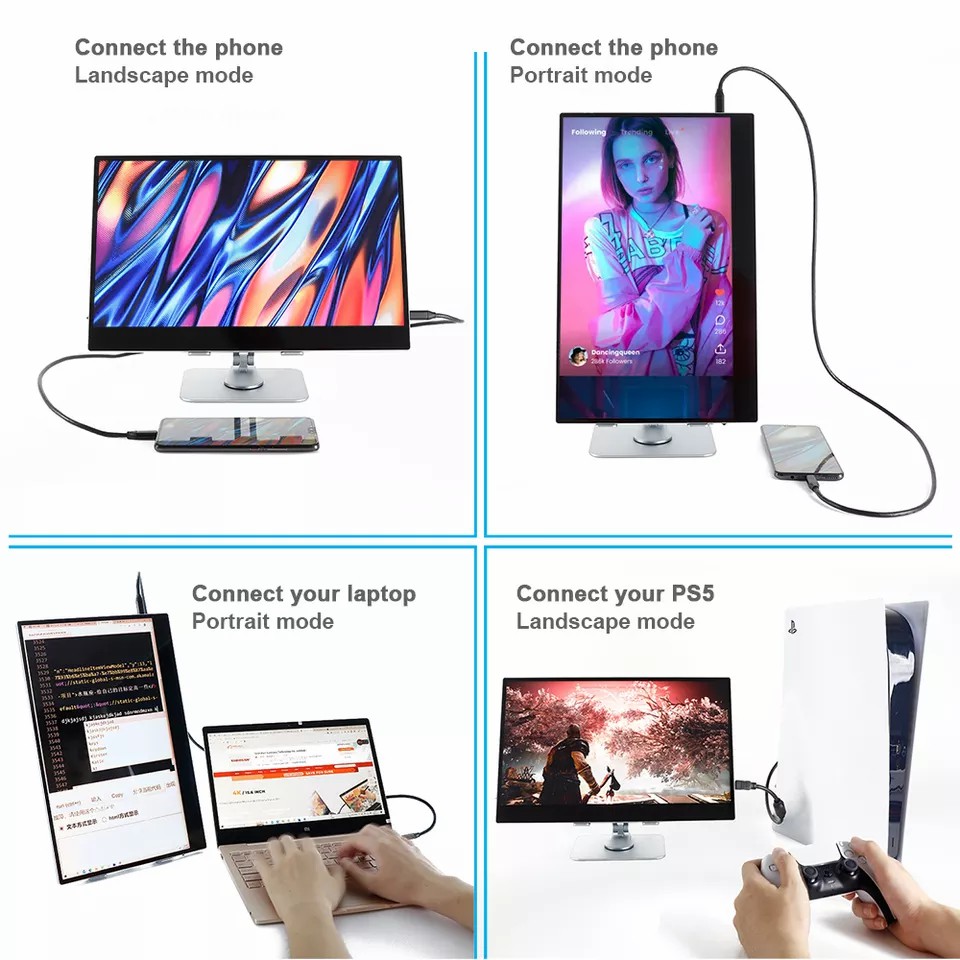

Gravity Sensor Automatic Rotation Portable Monitor
When connected to your device, the monitor will sense product direction automatically, and automatically switched display into horizontally or vertically according to the product's position, as the monitor usually take around 5s to sense product direction, so please do not rotate the monitor frequently. And it can only rotate 90 degrees at a time. If it does not rotate correctly, please reset the rotation on the touch menu.

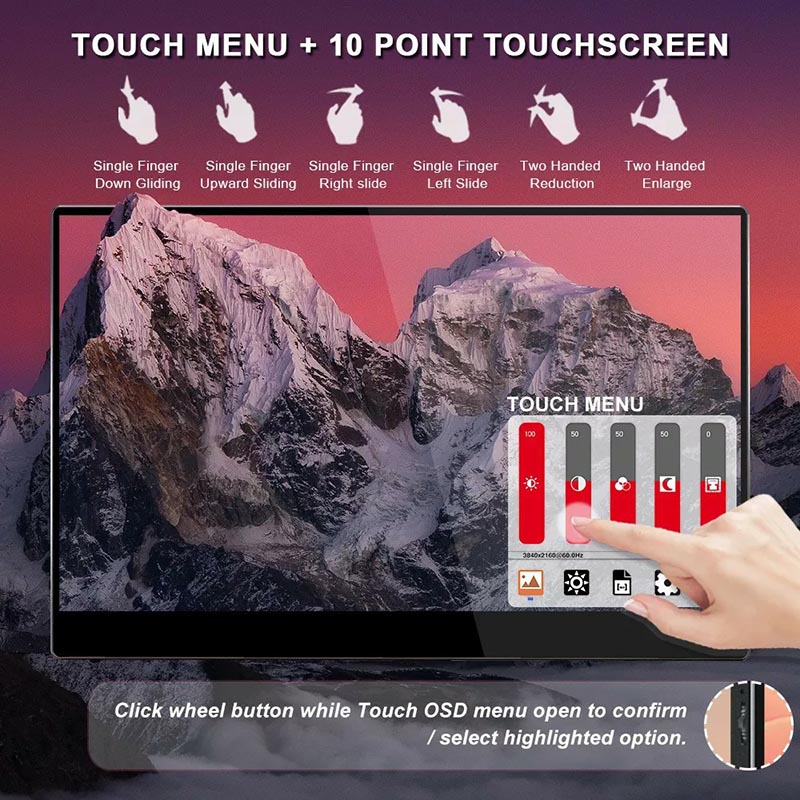

10-Point Touch Pinch-to-Zoom with Gravity Sensor Automatic Rotation Win10 touch screen 10-point touch and pinch to zoom gesture is precise and sensitive, touching OSD menu on the screen, fingertip sliding, simple and precise. When connected to a mobile phone or computer, the monitor will automatically sense the direction of the product and switch between the horizontal and vertical screens. (Support Mac OS single touch. Works with more systems and the latest devices.)

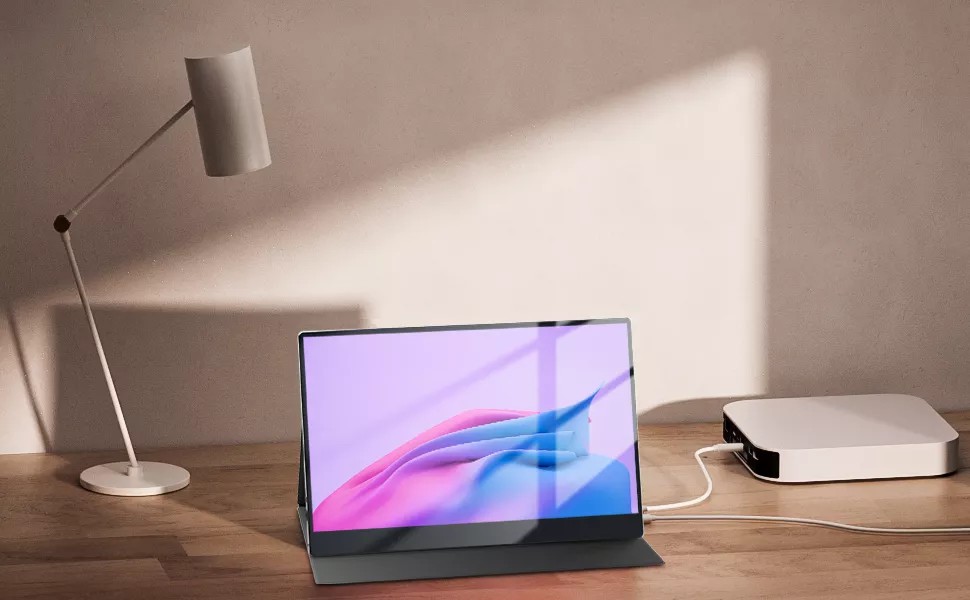

Plug & Display Portable Monitor
This monitor is equipped with a Mini HD, and Two Full-feature USB-C ports ( Both support power & signal transmission). It only requires a single USB-C cable for both power and video transmission from your host device, which supports USB 3.1 or Thunderbolt 3 connection, and Via HD for full compatibility.

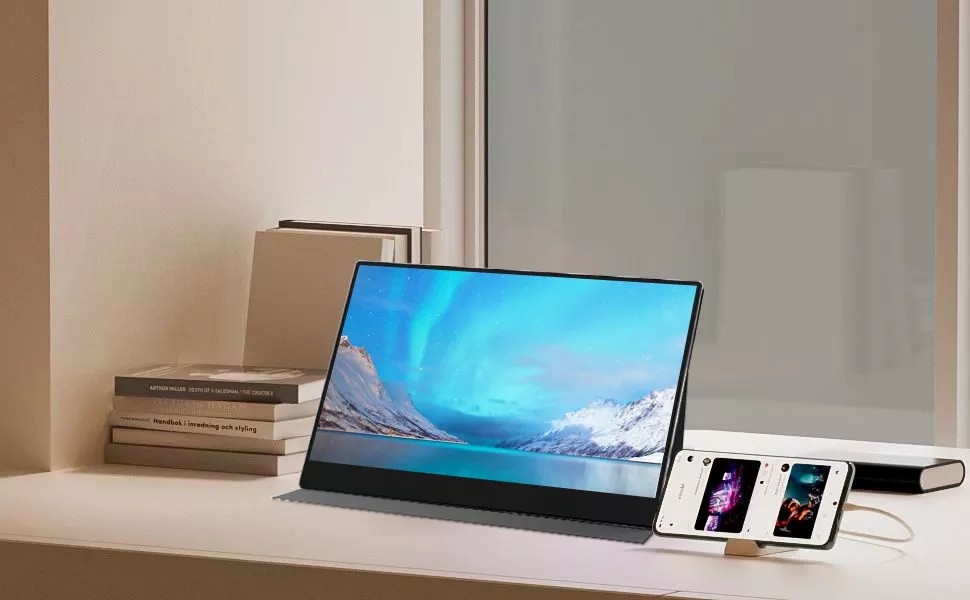

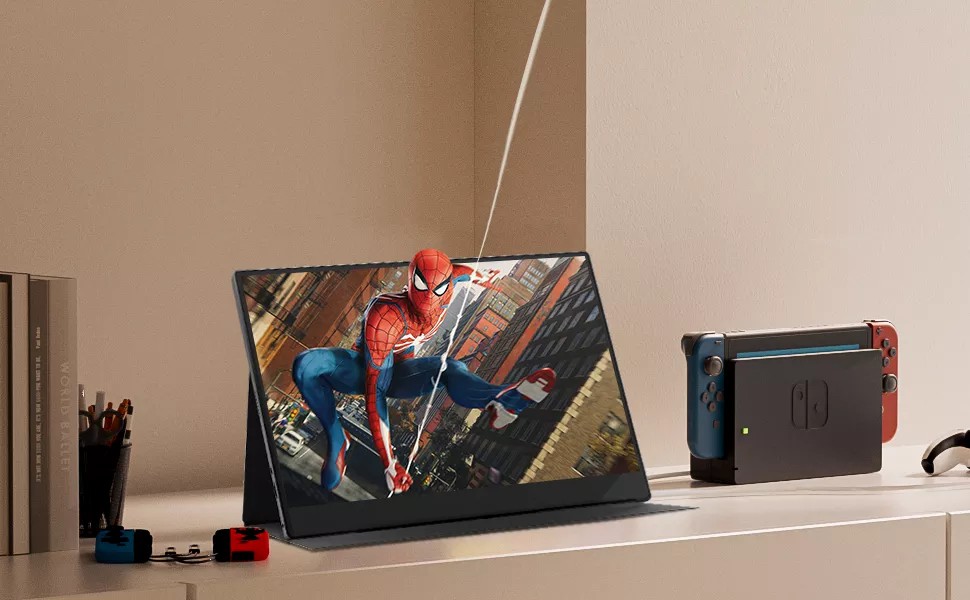

Product Usage

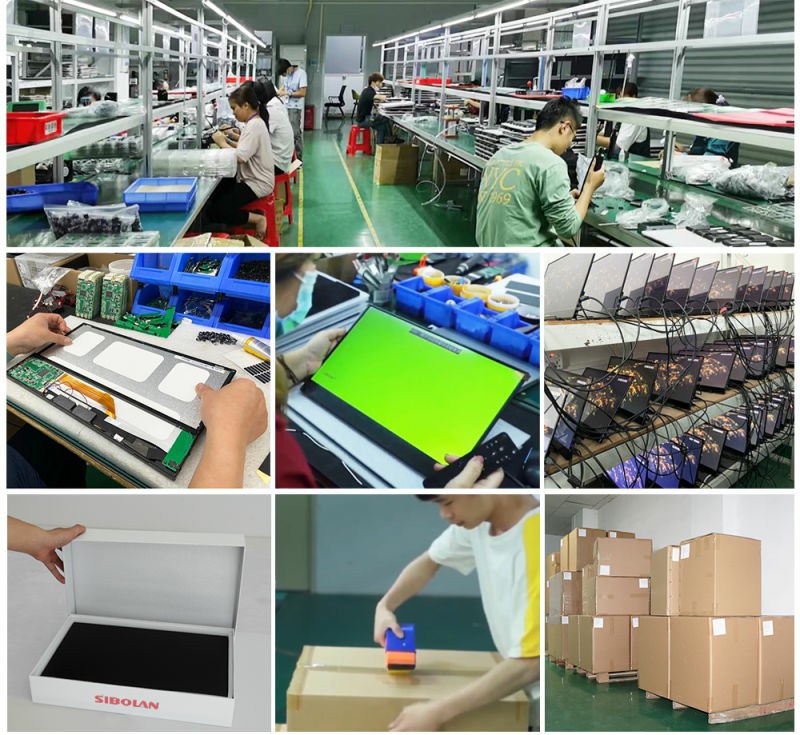

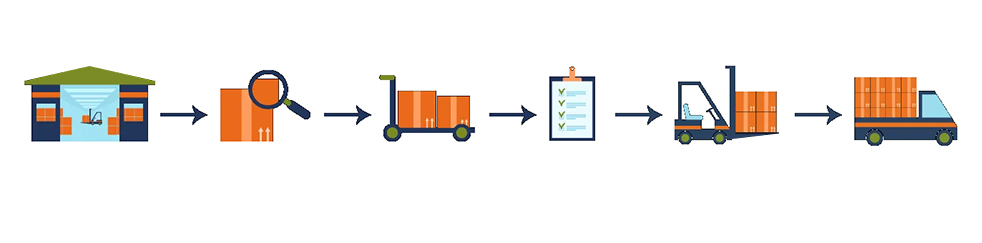

Packing&Shipping
