Brand:
SIBOLANItem NO.:
MMW-04Product Origin:
CHINAColor:

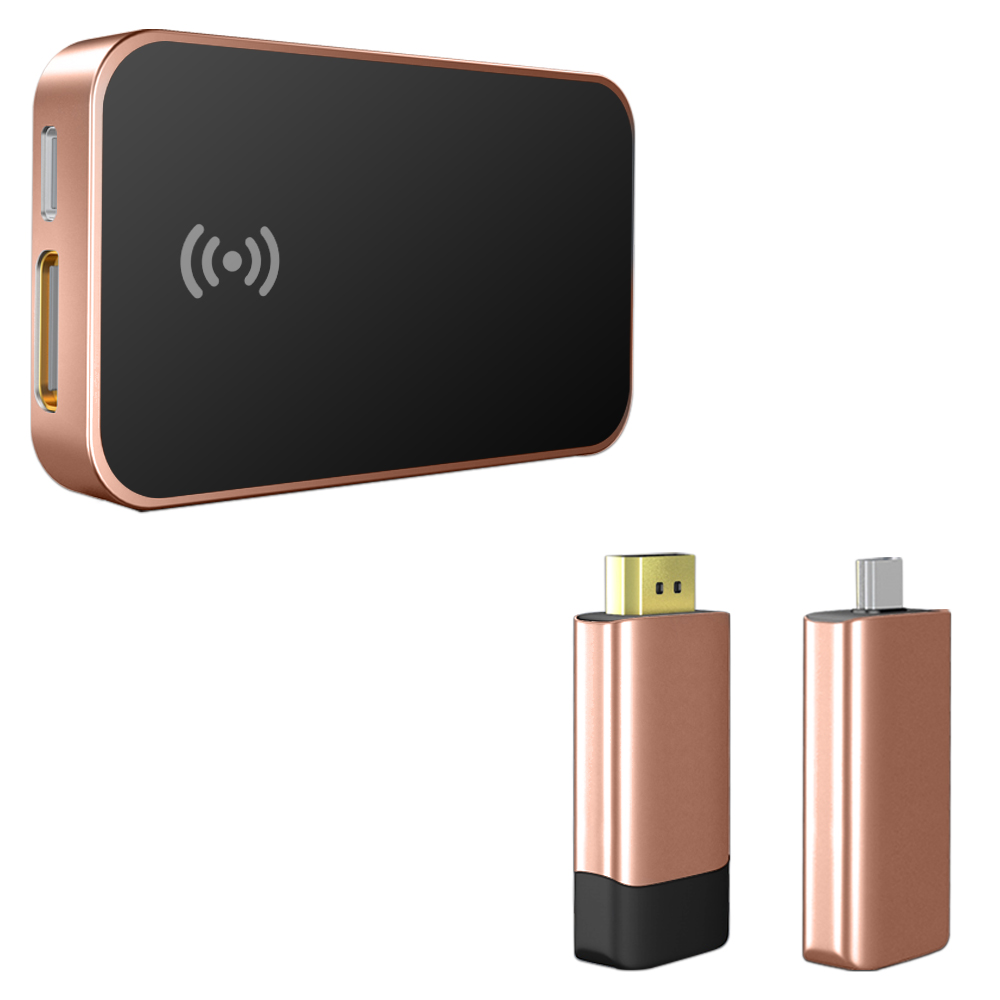

Rose GoldShipping Port:
Shenzhen
Product Description

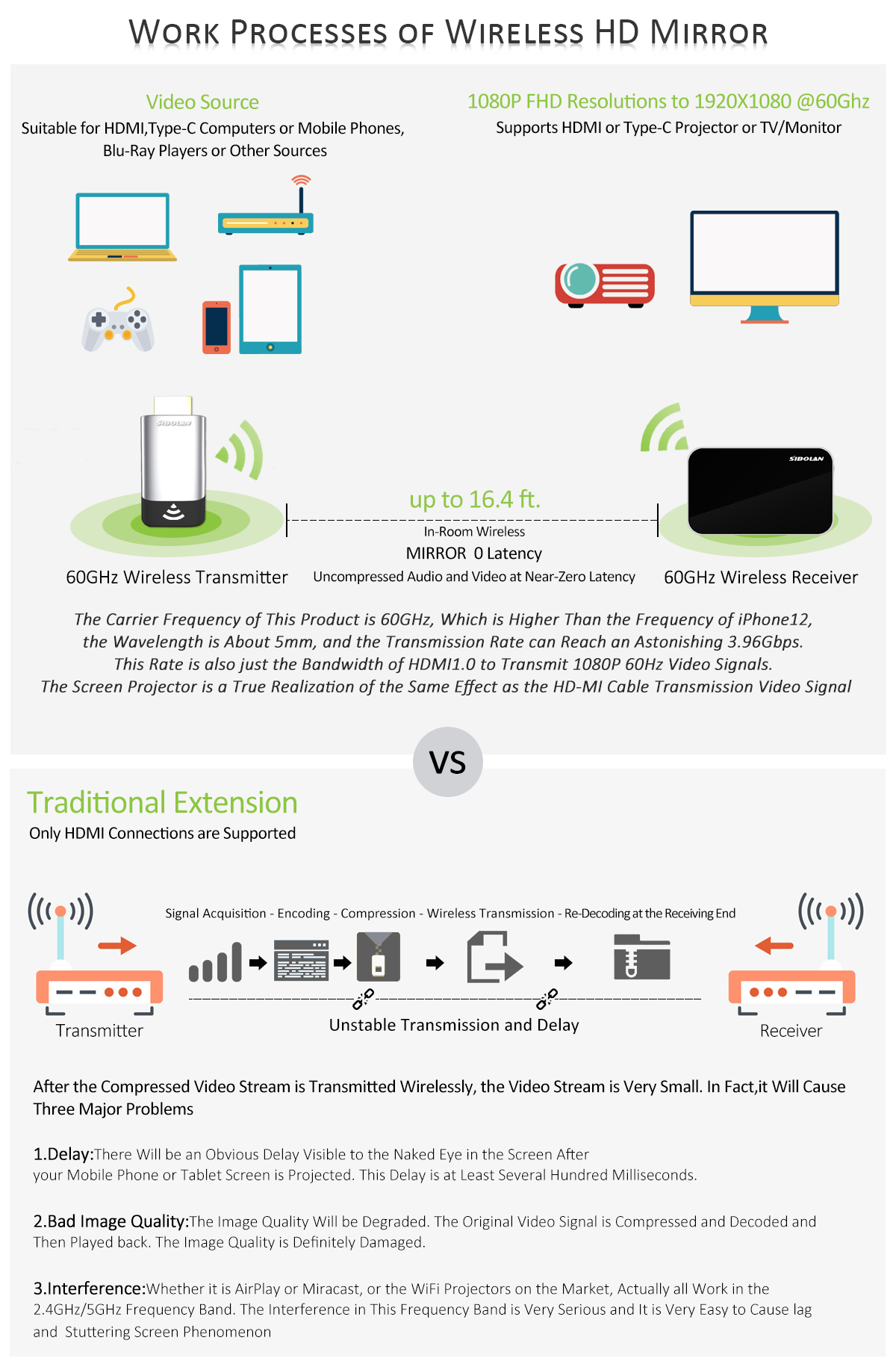

This item is designed to transmit HDMI or USB-C(Lightning)audio and video signals wireless up to 5 meter from an HDMI or USB-C(Lightning)source to an HDMI display within direct line of sight with ZERO latency! Experience 1080P@60Hz video resolutions with ZERO delay, making it the perfect device for desktop or presentation applications as well as gaming. It supports high-definition digital audio formats like Dolby, True HD and DTS-HD so that users don’t have to compromise their viewing experience for convenience.
KitNew Wireless 60GHz Millimeter Wave Technology Support for iphone Laptop PS5 Gaming HDMI Transmitter Receiver Extender Kit
Kit New Wireless 60GHz Millimeter Wave Technology Support for iphone Laptop PS5 Gaming HDMI Transmitter Receiver Extender Kit
Wireless HDMI-Millimeter Wave Specification
|
||
Product Model
|
SIBOLAN Wireless HDMI -MMW04
|
|
Item
|
Transmitter (TX)
|
Receiver (RX)
|
Transmission Technology
|
Millimeter Wave Technology
|
|
Frequency band
|
60GHz
|
|
Transmission rate
|
3.96Gbit
|
|
Transmission range
|
5 Meter(line-of-sight region)
|
|
Video / Audio
|
Uncompressed ,Audio-Video Synchronization Supported
|
|
Supporting Resolution
|
Full HD 1080P @ 60hz
|
|
Latency
|
Nearly Zero
|
|
Simultaneous Transmission Angle
|
60°
|
|
Connection method
|
Plug and Play ,Does not need WiFi or App
|
|
Whether To Support One RX To Multiple TX
|
Support ,One Receiver To 7 Transmitters maximal
|
|
Applicable Scenarios
|
Business Meeting, Home Entertainment, Online Course, Live Streaming, Live TV, Gaming, etc.
|
|

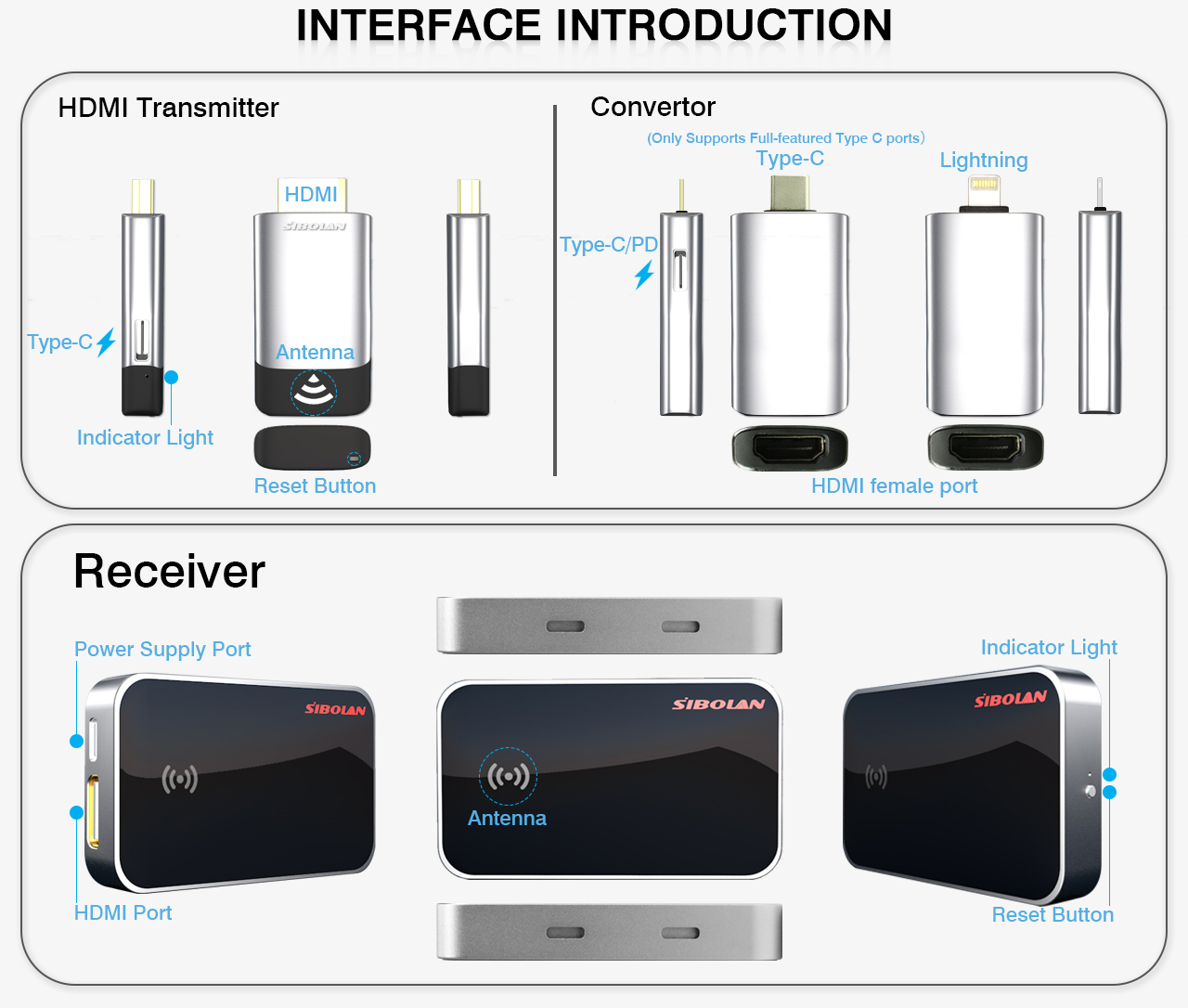

Interface
|
Transmitter:
HD-MI Standard (Male) Power Port USB Type-C Convertor: USB Type-C (Male) Power Port (PD Fast Charging) HD-MI standard (Female)-Connect to Transmitter Lightning Convertor(Optional): Lightning Port (Male) Power Port (PD Fast Charging) HD-MI standard (Female)-Connect to Transmitter |
Receiver:
HDMI standard (Female) Power Port |

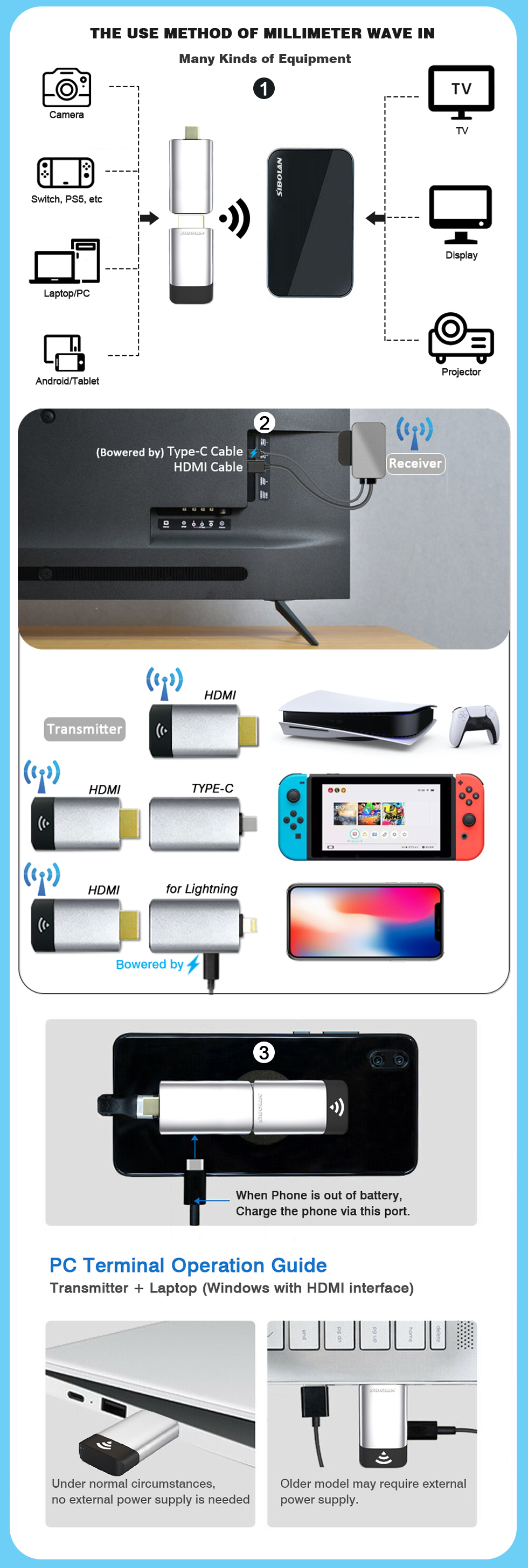

Supported Devices
|
Transmitter:
HDMI-Out interface Devices : Support Gaming Consols /PlayStation PS5 /PS4 / Switch /Computer /Laptop / Tablet / Cameral /TV Box /DVD/Blu-ray Player, etc Transmitter+USB Type-C Convertor: Device with Type-C interface (DP protocol to HD Ml interface): SmartPhone /Laptop /Mac Transmitter+Lightning Convertor(Optional): Support for iphone ,lpad (Need extra Power) |
Receiver:
HDMI-IN interface Display / TV/ Monitor / Projector/Sibolan Brand Portable Monitor |
Power
|
Transmitter:
1.Transmitter:Powerd by the Devices connected to it 2.USB or adaptor(5V-1A) |
Receiver:
USB or adaptor (5V-1A) |
Power consumption
|
0.52W
|
2.5W
|
Working current
|
100mA
|
500mA
|
Working Temperature
|
0-60 degrees
|
|
Reset Keystroke Time
|
10S
|
|
Enter Hibernation Time
|
2 minutes (no signal transmission, enter hibernation time)
|
|
Reset Pairing
|
Support
|
|
Functional Indicator
|
Indicator Light
Red: Power on Blue: Searching Signal Green: Pair and connect successful |
|
Color
|
Silver-Gray (Optional color:Golden/Black/Red or OEM color with bulk quantity)
|
|
Material
|
Aluminium Alloy+ABS
|
Aluminium Alloy+PC
|
weight
|
Transmitter:13.4g
USB Type-C Convertor:13.7g Lightning Convertor:13.7g |
70g
|

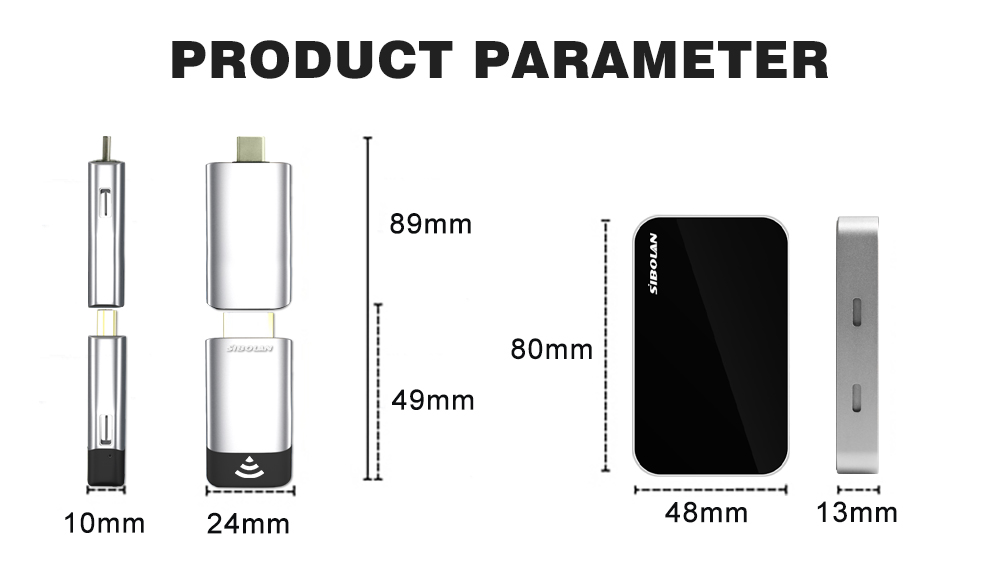

Dimensions
|
Transmitter:50*23*10MM
USB Type-C Convertor:49*23*10MM Lightning Convertor:48*23*10MM |
RX:L x W x H=80*46*15MM
|
Package
|
Size: 13.7X12.2X4.8 cm
Weight: 333 g
|
|

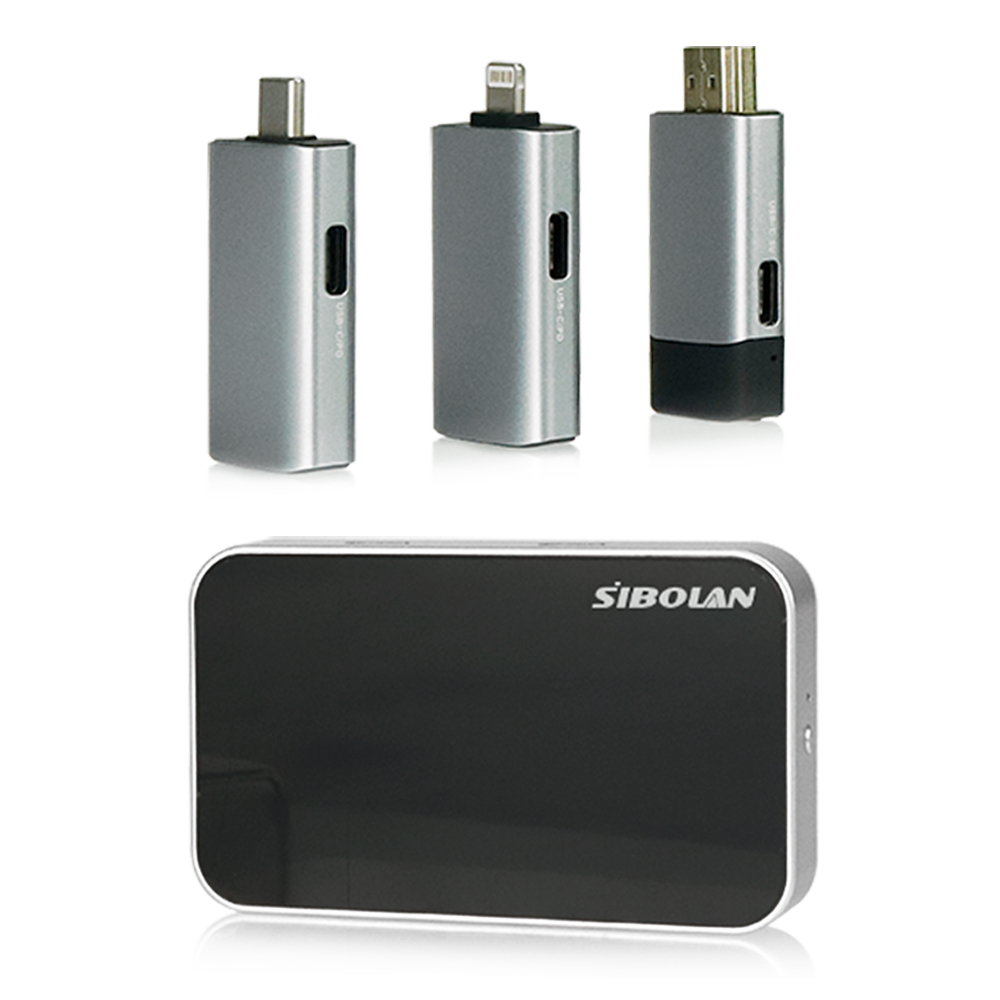

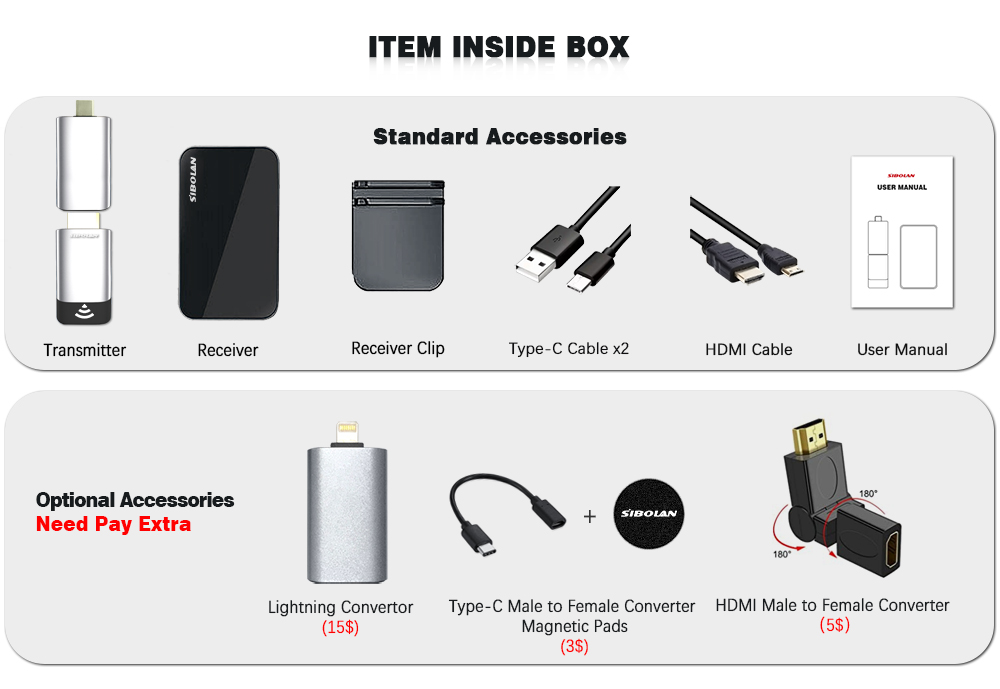

Accessories (Standard)
|
Transmitter*1 / USB Type-C Converter*1 / Receiver*1 / HDMI Male-Female cable*1 / Type-C Data Cable*1 / Power Cable*1 /Mounting Bracket*1
/ User Manual*1 |
|
Optional Accessories (Need Pay Extra)
|

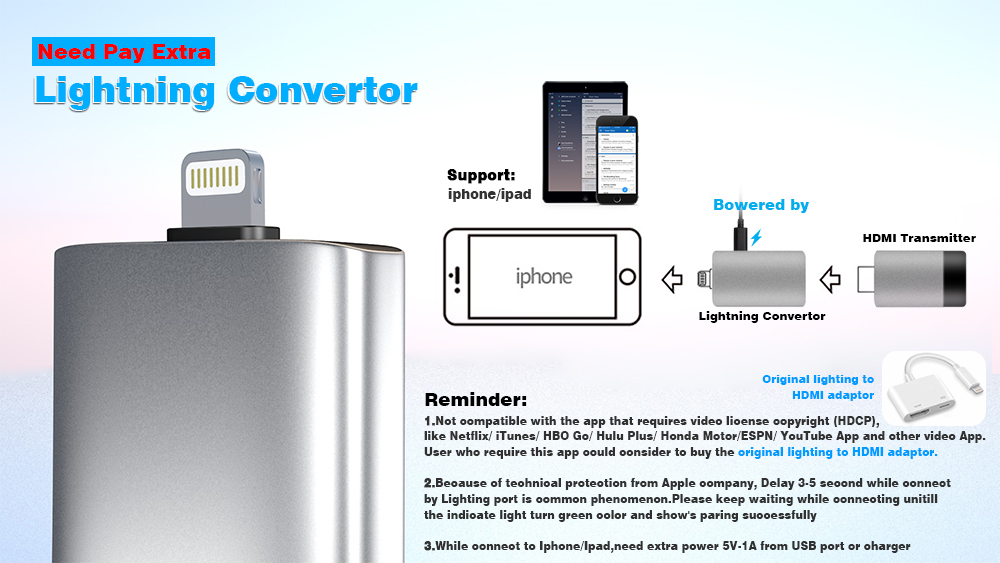

Lightning Converter*1+15$
HDMI Male to Female Converter*1+5$
Type-C Male to Female Converter*1 / Magnetic Pads*1+3$
|
SIBOLAN New Wireless 60Ghz Millimeter wave technology 3.96Gbps / 5 Metre HDMI Support Laptop Ps5 Gaming Transmitter Receiver Extender Kit
Q: Transmitter and receiver can not be connected?
A:Confirm if your device supports DP output function. Confirm the device is within 5 meters, then reconnect after resetting the device;
Q: What models does the transmitter and receiver supported?
A:Transmitter adapter: All lphones (lightning adapter required), android phone with HD function and Type-C interface. Receiver adapter: the device must adapt to HD IN interface. Support: TV, monitor and projector;
Q: The indicator light doesn't turn on after the device is connected?
A:Check the power supply of transmitter and receiver, both should be greater than 5V/2A;
Q: Can all Type-C interfaced mobile phones cast wirelessly?
A:No. Only Display Port over Type-C port;
Q: How to verify that my mobile phone supports wireless casting?
A:Insert the C2H adapter into the mobile phone, connect the HD port of C2H and TV with an HD cable. If a wired projection can be established, then the mobile phone supports wireless casting.New Wireless 60GHz Millimeter Wave Technology Support for iphone Laptop PS5 Gaming HDMI Transmitter Receiver Extender Kit
3.While connect to lphone/Ipad,need extra power 5V-1A from USB port or charger;

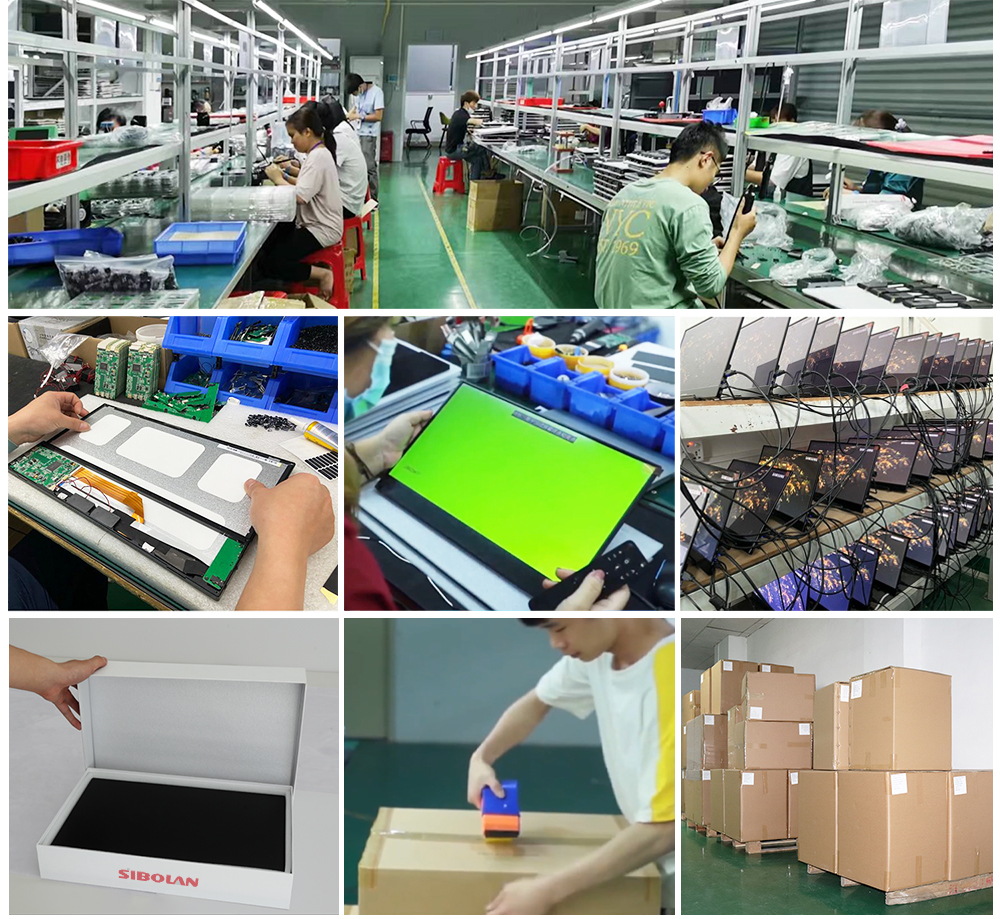

Company Introduction
